Embedded Panel Data Acquisition System Smart K Type 8 Channel Paperless Temperature Recorder

Brand Name:	TOPRIE
Model Number:	TP740
MOQ:	1 piece
Price:	USD 245.00 ~USD 520.00
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 pieces per day

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE ROHS

Keyword:

Paperless Recorder

Power Consumption:

Numbers Of Channel:

8CH Universal Input,4CH Switch Quantities /pulse Sampling Input,4CH Relay Output

Input Signal:

Thermocouple, Thermal Resistor,current And Voltage.analog Input

Switch Quantities Inputt:

2~4CH Can Be Optional, Present Is Under IO Status

Record Interval:

1-9999s

Storage:

8GB Built-in TF Card

Record Mode:

Loop Record

Alarm Type:

Upper And Lower Alarm Output With 4 Mode, 2 Uppers And 2 Lowers

Relay:

2~4CH Normal Open Relay 30VDC/1A

Wired Communication:

RS485 Modbus RTU Protocol Ethernet Port Support Modbus TCP Protocol

Wireless Communication:

4G,WiFi,LoRa Or Thread Optional

Operation Environment:

-20℃~60℃ 0~95%RH No Condensing

Material:

Fireproof ABS

Dimension:

96*96*102mm

Open Hole Size:

92*92mm

Packaging Details:

packed in paper carton

Supply Ability:

100 pieces per day

Highlight:

Embedded Panel Data Acquisition System

Smart Data Acquisition System

8 Channel Paperless Temperature Recorder

Product Description

Panel Data Acquisition System Smart K Type Temperature Recorder 96*96mm Embedded Panel 8 Channel Paperless Recorder

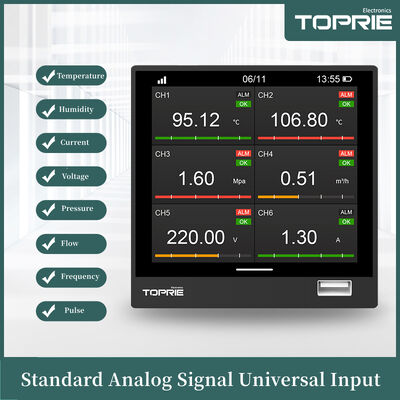

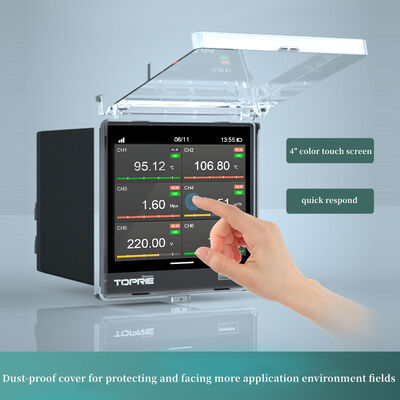

4" touch screen paperless recorder with 12 channel (8 channel universal input,2-4 channel of pulse input for optional)
It supports analog input signal temperature,humidity,current,voltage,pressure,level,flow,displacement etc..

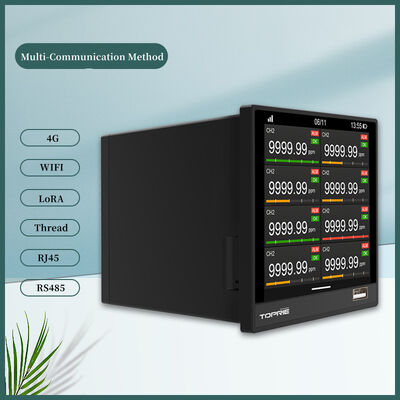

Communication: RS485,4G,WiFi, Ethernet,LoRa etc..
Certificates CE,ROHS
Protocol:Modbus RTU,Modbus TCP
Warranty: 12 months

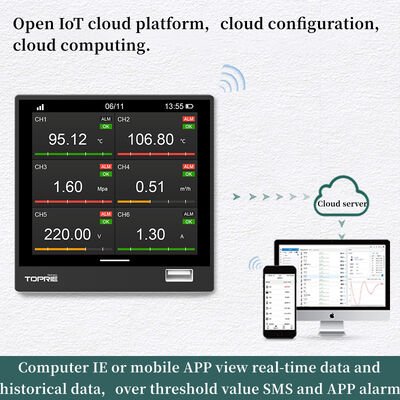

Free IoT plaform and mobile APP monitor, support real-time data view,historcial data export CSV,PDF format,alarm information push via email.

Data Acquistion list

Input type		Measuring range (Indication range)	Measuring accuracy (quoted error,absoluted error)	Digit display resolution
DC voltage	0-10V	0V~＋11.000V	0.05%F.S±0.1mV	0.01V
	0-5V	0V~＋5.000V	0.05%F.S±0.1mV	0.01V
	±20mV	-21mV~＋21mV	0.005%F.S±0.005mV	0.01mV
	±100mV	-110.0mV~＋110.mV	0.005%F.S±0.005mV	0.01mV
DC current	4-20mA	＋3mA~21.00mA	0.005%F.S±0.005mA	0.01mA
			Measuring accuracy (related error) all without even numbers
Themocouple	K	-60℃~+1372℃	±0.05%rdg.±2.0℃	0.01℃
	J	-100℃~+1200℃	±0.05%rdg.±2.0℃	0.01℃
	E	-100℃~+1000℃	±0.05%rdg.±2.0℃	0.01℃
	T	-100℃~+400℃	±0.05%rdg.±2.0℃	0.01℃
	N	-100℃~+1300℃	±0.05%rdg.±2.5℃	0.01℃
	W	+1500℃~+2315℃	±0.05%rdg.±3.5℃	0.01℃
		0℃~+1500℃	±0.05%rdg.±3.0℃	0.01℃
	R	+800℃~+1768℃	±0.05%rdg.±3.0℃	0.01℃
		+400℃~+800℃	±0..2%rdg.±4.0℃	0.01℃
	S	+800℃~+1768℃	±0.05%rdg.±3.0℃	0.01℃
		+400℃~+800℃	±0.2%rdg.±2.0℃	0.01℃
	B	+800℃~+1820℃	±0.05%rdg.±3.0℃	0.01℃
		+400℃~+800℃	±0.2%rdg.±4.0℃	0.01℃
Thermal resistor	PT100	-200℃~+660℃	±0.05%rdg.±0.4℃	0.01℃
	PT1000	-200℃~+300℃	±0.05%rdg.±0.4℃	0.01℃
Warmup time	Over 10 minutes
Operation status	Temperature:25℃ ±3℃ Humidity: 55%±10% Power supply 8V~28VDC
Environment	-20℃~60℃ 0~95%RH no condensing

Application field

TP740 paperless recorder is widely used in all kinds of fields, such as electrical furnace, industrial oven, temperature and humidity test chamber, medical lab, as well as in chemical,pharmacy,food,agriculture and power industries.
