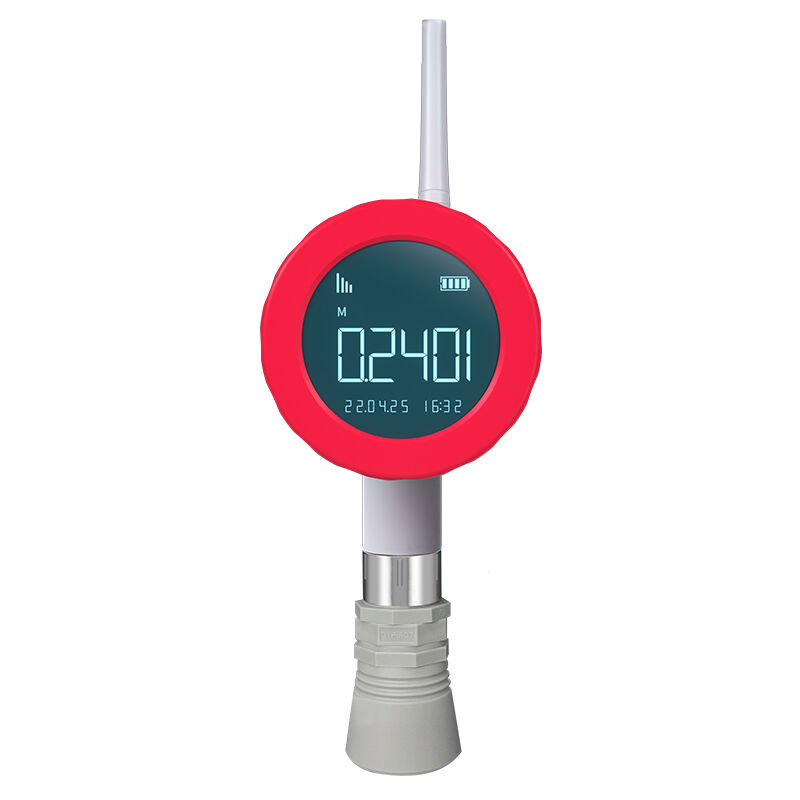

4G WiFi MQTT Ultrasonic Level Monitor Wireless Water Level Sensor 0
Ultrasonic Level Meters are digital instruments with 4G, WiFi, LoRaWAN, LoRa, which are used to measure the height of liquid, solid, or slurry in tanks or open channels. They operate by emitting high-frequency sound waves and calculating the distance based on the time it takes for the echo to return.

Technical Specifications

Parameter Specification
Product Name Wireless Ultrasonic level sensor
Working Power Battery powered waterproof version 3.6V, 17Ah; explosion-proof version 3.6V, 19Ah
External power supply and rechargeable version need to be specified
Battery Life NB-IOT/LoRa communication: 5-6 years (data uploaded once an hour, stable signal)

4G communication: 2-2.5 years (data uploaded once an hour, stable signal)

Battery model (non-rechargeable batteries, replaceable batteries)
Display TFT LCD screen
Power Consumption Standby current ≤80uA, average data transmission current ≤150mA
Network Standard WIFI, 4G(SIM card), LoRa (Need use our LoRa gateway), RS485, LoRaWAN, NB-IOT, GPRS optional
Antenna External antenna
Sampling Interval Configurable time is 10S~2550S
Configuration Configurable time is 1min~1440min. The shorter the configurable time, the shorter usage of battery life
Data Transmit Interval USB configuration operation, server remote configuration, Bluetooth configuration
Wake-up Mode Button, timing
Upload Information Level, temperature, battery level, signal, card number
Operating Temperature -30℃~70℃ (Medium does not crystallize)
Measuring Range 0-8M (Measuring angle 15 or 20 degrees optional)
Measurement Accuracy ±(1+S*0.3)%CM
Measurement Blind Area 25CM
Temperature Compensation With temperature compensation
Interface Specifications Ultrasonic measurement
Protection Level Waterproof model IP66; explosion-proof model IP68
