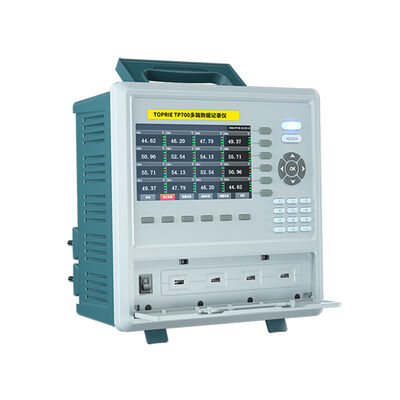

Multi Channel Thermocouple Data Logger Modbus RTU RS485 Intelligent Temperature Recorder

Brand Name:	TOPRIE
Model Number:	TP9000
MOQ:	1 piece
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	100 pieces per day

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Keywords:

Temperature Recorders

Power Supply:

AC85V~265V Or DC 12~24V

Channel Quantities:

1~64CH Support Expanded Module

Input Signal:

K,E,R,B,N,T,E,J,S,WRE5-26,WRE3-25 Pt100 Pt1000

Sampling Time:

1~19999 Sec

Memory:

2G Or 70MB Can Be Optional

Record Mode:

Loop Recording

Communication:

Ethernet,RS485,RS232, 4G, WiFi Can Be Optional

Protocol:

Modbus TCP, Modbus RTU

Material:

ABS+PC

Dimension:

288*288*200mm

Available

Warranty:

12 Months

Packaging Details:

Packed in paper box

Supply Ability:

100 pieces per day

Highlight:

Multi Channel Thermocouple Data Logger

Multi Channel Data Logger RS485

Intelligent Temperature Recorder Data Logger

Product Description

Multi-channel Thermocouple Data Logger Modbus RTU RS485 Temperature Analysis Device Intelligent Temperature Recorder Made In China

High-speed data acquisition, excellent anti-interference performance

The TP9000 Multi-channel Data Logger, independently manufactured by Toprie, supports the simultaneous measurement of temperature, humidity, current, voltage, pressure, liquid level, flow rate, displacement and other parameters. Featuring a minimalist design, it is compact and user-friendly, and enables wireless remote transmission of data to computers (via Internet Explorer) as well as mobile phones and WeChat for real-time monitoring.

Multi Channel Thermocouple Data Logger Modbus RTU RS485 Intelligent Temperature Recorder 0

Acquisition Selection

Name	Model	Channel Quantities	Description
Universal input signal acquisition card	TP1708P2.1	8CH	Thermocouple: K/T/J//E/S/R/N/B/WRe3/WRe5 Thermal resistor: PT100/PT1000 DC Voltage: 0-5V / 0-10V / ±100mV / ±20mV DC current: 4-20mA / 0-20mA Sampling speed: 1s
Universal input signal acquisition card (0.1s)	TP1708P1	8CH	Thermocouple: K/T/J//E/S/R/N/B/WRe3/WRe5 Thermal resistor: PT100/PT1000 DC Voltage: 0-5V / 0-10V / ±100mV / ±20mV DC current: 4-20mA / 0-20mA Sampling speed: 0.1s
DC voltage acquisition card	TP1758	8CH	DC voltage measurement: 0-120V accuracy: 0.5%, resolution: 1mV (Customized range 0-300V)
Multiple current acquisition card	TP1748	8CH	DC current measurement: 0-10A accuracy: 0.5%, resolution: 1mA (Customized large current)
AC DC power acquisition card	TP1706V1	1	Single phase AC and DC power, including voltage/current/power/frequency/power factor/KWh etc., voltage range: 5~1000V, current 10mA~20A, frequency: 45Hz~400Hz
Three phase power acquisition card	TP1707	1	Three phase AC and DC power, including voltage/current/power/frequency/power factor/KWh etc., voltage range: 5~1000V, current: 1A~1000A / 1mA~20A, frequency: 1Hz~400Hz Remark: 1~1000A (Rogowski coil current transformer); 1mA~20A (large ratio current transformer)
Temperature and humidity acquisition card	TP1728	8	TP2305V2 temperature and humidity probe
Relay acquisition card	TP1708J	8	8 channel normal open or close relay contact output overload 250V 2A
Switch quantities acquisition card	TP1708K	8	8CH switch quantities signal input, wet contact 5~24V
NTC temperature acquisition card	TP1708N	8	NTC temperature sensor, including 3600/3950/3425/3435/other specification can be customized

Accuracy List

Input Type	Measuring Range	Measuring Accuracy	Display Resolution
0-10V	-0.5V ~ +11.000V	0.01% F.S ± 0.002V	Maximum 6 digit display
0-5V	-0.5V ~ +5.500V	0.01% F.S ± 0.002V
±20mV	-21mV ~ +21mV	0.005% F.S ± 0.005mV
±100mV	-110.0mV ~ +110.0mV	0.005% F.S ± 0.005mV
4-20mA	+3.00mA ~ +21.00mA	0.01% F.S ± 0.001mA
0-20mA	+0.00mA ~ +21.00mA	0.01% F.S ± 0.001mA
K	-200℃ ~ +1372℃	±(0.1% rdg. + 1.0℃)	Maximum 6 digit display
J	-200℃ ~ +1200℃	±(0.1% rdg. + 1.0℃) ≤0 ±(0.15% rdg. + 1.0℃)
E	-200℃ ~ +1000℃	±(0.1% rdg. + 1.0℃) ≤0 ±(0.15% rdg. + 0.5℃)
T	-200℃ ~ +400℃	±(0.1% rdg. + 1.0℃) ≤-30℃ ±(0.15% rdg. + 0.5℃)
N	-200℃ ~ +1300℃	±(0.1% rdg. + 1.0℃) ≤0 ±(0.3% rdg. + 0.7℃)
W	+1500℃ ~ +2315℃ 0℃ ~ +1500℃	±(0.05% rdg. + 1.5℃) ±(0.05% rdg. + 1.0℃)
R	+800℃ ~ +1768℃ +400℃ ~ +800℃	±(0.05% rdg. + 1.5℃) ±(0.2% rdg. + 2.0℃)
S	+800℃ ~ +1768℃ +400℃ ~ +800℃	±(0.05% rdg. + 1.5℃) ±(0.2% rdg. + 2.0℃)
B	+800℃ ~ +1820℃ +400℃ ~ +800℃	±(0.05% rdg. + 1.5℃) ±(0.2% rdg. + 2.0℃)
Pt100	-200℃ ~ +660℃	±(0.02% rdg. + 0.3℃)
Pt1000	-200℃ ~ +300℃	±(0.02% rdg. + 0.2℃)
Cu50	-50℃ ~ +150℃	±(0.02% rdg. + 0.3℃)
Warmup time: over 30 Mins
Thermocouple measurement: including cool compensation accuracy
Operation (listed accuracy): under Temperature: 25℃ ±3℃ humidity: 55% ±10% RH
Storage: -20℃ ~ 50℃ 0-90% RH (No condensing)

Advantages

It supports the connection of multiple types of signal sensors, enabling the simultaneous testing of parameters including temperature, voltage, humidity, pressure, flow rate, liquid level, current, frequency, vibration, rotational speed and others.

Application

The TP9000 Multi-channel Data Logger is widely used in such fields as power and electrical engineering, biopharmaceuticals, electronic testing, new energy, transportation, meteorology, environmental protection, agriculture, and various other industrial sectors.

FAQ

Q: What channel specifications are available for the TP700 Multi-channel Data Logger?

A: The available options include 8-channel, 16-channel, 24-channel, 32-channel, 40-channel, 48-channel, 56-channel and 64-channel (expandable up to 200 channels), and it is customizable on demand.
