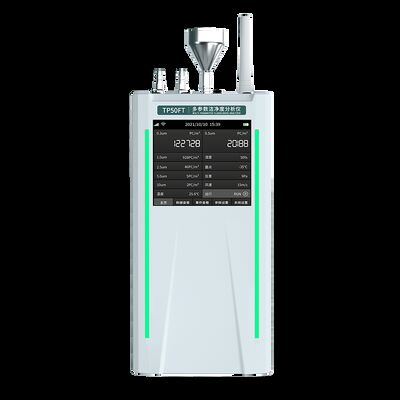

Pm2.5 PM5 PM10 PM0.3 Dust Particle Counter RJ45 4G Multi Parameter Air Particle Size Analyzer

Brand Name:	TOPRIE
Model Number:	TP50FT
MOQ:	1 piece
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability:	100 pieces per day

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Keywords:

Dust Particle Counters

Particle Size:

PM0.3μm, 0.5μm ,1.0μm,2.5μm,5.0μm,10.0μm Range:10000000 Particles/L

Flow Rate:

28.3L

Power Supply:

DC24V

Communication:

4G,WiFi & RJ45

Protocol:

MQTT,modbus TCP

Measuring Object:

Temperature, Humidity, Particle, Differential, Air Flow Etc..

Recording Time:

1~60min

Display:

Color Touch Screen 480*480 Pixel

Memory:

8GB

Color:

Grey

OEM:

Available

Warranty:

12 Months

Dimension:

331.9*143.79*87mm

Material:

ABS

Packaging Details:

packed in paper carton

Supply Ability:

100 pieces per day

Highlight:

PM10 Dust Particle Counter

PM5 Dust Particle Counter

Air Particle Size Analyzer

Product Description

High Quality Dust Particle Counter 28.3L Air Particle Size Analyzer

Professional Cleanroom Monitoring Solution

A state-regulated measuring instrument used to accurately measure the number of dust particles per unit volume and particle size distribution in clean environments. Essential for maintaining ISO-classified cleanrooms and controlled environments.

Product Specifications

Parameter	Specifications
Power Port Versatility	Power Supply Voltage: DC24V Power Supply Current: 2A Power Supply Interface: DC24V Round Hole Plug
External Sensor Interface	Temperature and Humidity: 4-pin Aviation Connector Interface Type: I2C Temperature Range: -20-60°C Accuracy: ±0.3°C (0-50°C), ±0.5°C for other ranges Humidity Range: 0-100%RH Accuracy: ±2%RH (20%-80%), ±3%RH for other ranges Dew Point (Optional): 5-pin Aviation Connector Interface Type: TTL Optional Brand: Vaisala DMT143/DMT143L: Range: -70-60°C, Accuracy: ±2°C Wind Speed/Noise/Other Gas Sensors (Optional): 5-pin Aviation Connector Interface Type: RS485
Data Transmission Mode	Wireless Communication: 4G, WIFI (choose one) + LORA, THREAD, ZIGBEE (choose one) Wired Communication: RJ45
Particle Detection Parameters	Particulate Matter Detection Range: 0.3-10μm Sizes: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm Resolution: 1pcs/m³ Particle Measurement Range: 1,000,000 particles/L Flow Rate: 28.3L/MIN
Pressure Sensor Measurement Parameters	Pressure Range: -500 to +500Pa Interface: 1/4-inch International Pagoda-type Interface Error Range: 1% Accuracy: ±5Pa
Detection Cycle	1-60MIN (Adjustable)
Hardware Performance	Environmentally Friendly Flame-Retardant Plastic Enclosure Customizable Colors, Default: Grey USB TYPE-C Interface for Debugging and Upgrading Colour-Changing Light Strip for Status Feedback Capacitive Touch Screen Display: 480×480 Colour LCD Screen Storage: 8G Capacity Drawer-Type SIM Card Slot SMA Female/Male Pin Header Antenna Connector Standby Current: 200mA Current When Particle Detection is Enabled: 150mA Dimensions as per the Three-View Drawing Above Operating Environment: -10°C ~ 60°C, 0%-95%RH Storage Environment: -20°C ~ 65°C, 30%-80%RH
Software Performance	4G, LAN Network Connection Platform WIFI Local LAN Server Supports Data Upload via THREAD, ZIGBEE, LORA Wireless LAN Large-Capacity Historical Storage 8GB Built-in Storage Supports Data Query via USB (TIP Assistant) Supports Historical Data Query on the Screen 4G and Network Cable Interfaces Support MODBUS RTU Protocol for Cloud Platform Connection Network Port Supports MODBUS TCP Server Function Network Port Supports MODBUS RTU Server Connection Wireless LAN Active Reporting Protocol Uses MODBUS Protocol for Active Reporting

Important Note

All specifications are subject to change without prior notice. Items marked as "Optional" may require additional configuration or cost. For detailed technical specifications and compatibility information, please consult with our technical support team.

Key Advantages

Advanced Laser Scattering Technology

Utilizes laser scattering principle for high-standard dust particle measurement with exceptional accuracy and reliability.

Enhanced Measurement Accuracy

Integrated external temperature and humidity sensor provides accuracy compensation for reliable measurements in varying environmental conditions.

High-Stability Sampling System

Features a high-stability, long-life special turbine fan with 28.3L/min constant sampling flow rate for consistent results.

Comprehensive Particle Sizing

Measures 6 particle sizes simultaneously: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm for detailed environmental analysis.

Flexible Connectivity Options

Multiple wireless transmission protocols: 4G, WIFI, LORA, ZIGBEE (THREAD) plus wired RJ45 connectivity.

Ample Data Storage Capacity

Large-capacity historical storage with 8GB built-in memory for extensive data recording and analysis.

Compliance with International Standards

National standard over-limit alarm with support for ISO14644-1 international standard and GB/T16292-1996 national standard.

Portable & User-Friendly Design

800g ultra-lightweight handheld design with compact, elegant appearance and intuitive capacitive touch screen interface.

Application Areas

This advanced particle counter is widely utilized across various industries and sectors where cleanroom monitoring and air quality control are critical:

Blood Centers & Medical Facilities Epidemic Prevention Stations CDC (Disease Control Centers) Quality Supervision Institutes Electronics Manufacturing New Energy Lithium Battery Industry Pharmaceutical Cleanrooms Semiconductor Fabrication Optical & Precision Machinery Plastics Manufacturing Painting & Coating Facilities Hospital Operating Rooms Environmental Protection Inspection & Testing Institutes Color Tube Manufacturing Microbiology Laboratories Scientific Research Departments Food Processing Facilities Biotechnology Companies
