| Brand Name: | TOPRIE |
| Model Number: | TP600 |
| MOQ: | 1 piece |
| Payment Terms: | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Supply Ability: | 100 pieces per day |

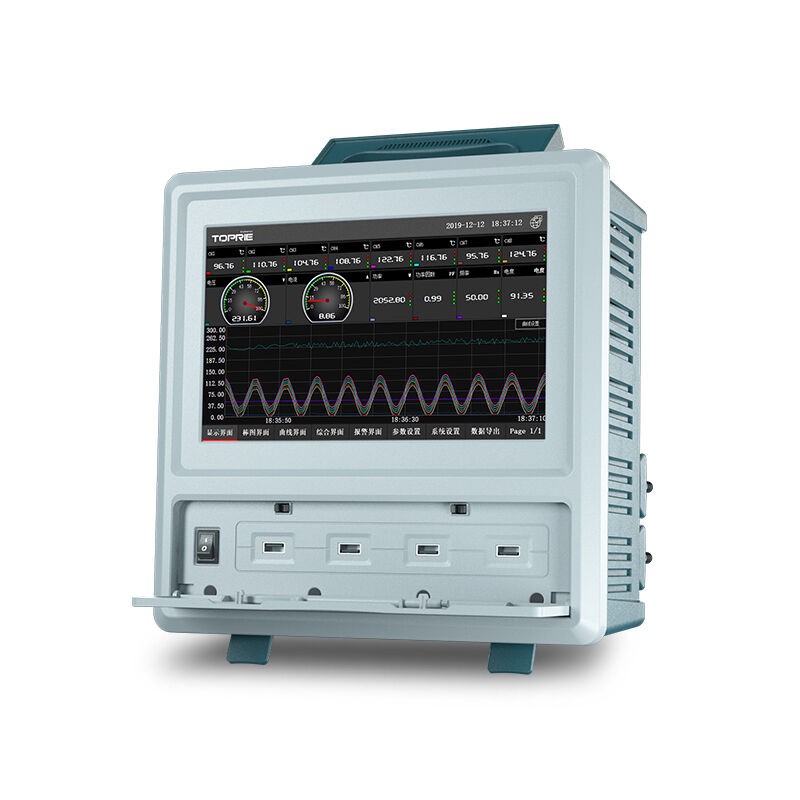

Multifunctional RS485 Electrical Parameter Analysis Equipment Modbus RJ45 Power Analyzer Data Logger
TP600 electrical parameter power analyzer adopts a modular design, which can test and record electrical parameters and temperature of multiple devices simultaneously. It supports up to 8 modules (free combination of electrical parameter modules and temperature modules).
Technical Paramters
| Temperature sensor type |
Themocouple:K,T,J,E,S,B,R. accuracy:±(0.05% rdg.+0.5℃) Thermal resistor:PT100,PT1000 accuracy:±(0.05% rdg.+0.3℃) |
| Power supply | AC85V~265V DC24V |
| Sampling rate | Once per second |
| Current range | 10mA~20A~500A |
| Voltage range | 5~600V |
| Power | 0.05W~300KW resolution 0.1W |
| Power factor | 0.1~1.0 |
| Recording interval time | 1~999999S |
| Frequency | TP1706AC module 45~65Hz / TP1706ADC module 0-400Hz |
| Power consumption | ≤25VA |
| Recording mode | Loop record |
| Alarm type | UP and Low alarm, 4 types (upper,up,low and lower) |
| Relay | 8 CH open relay 220VAC/5A |
| Material | Fireproof ABS |
Application
TP600 electrical parameter power analyzer is widely used in refrigeration, power & energy, household appliances, lighting appliances, photovoltaics, new energy industries and other smart IoT fields.
