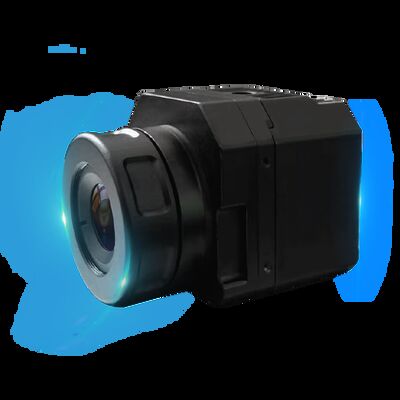

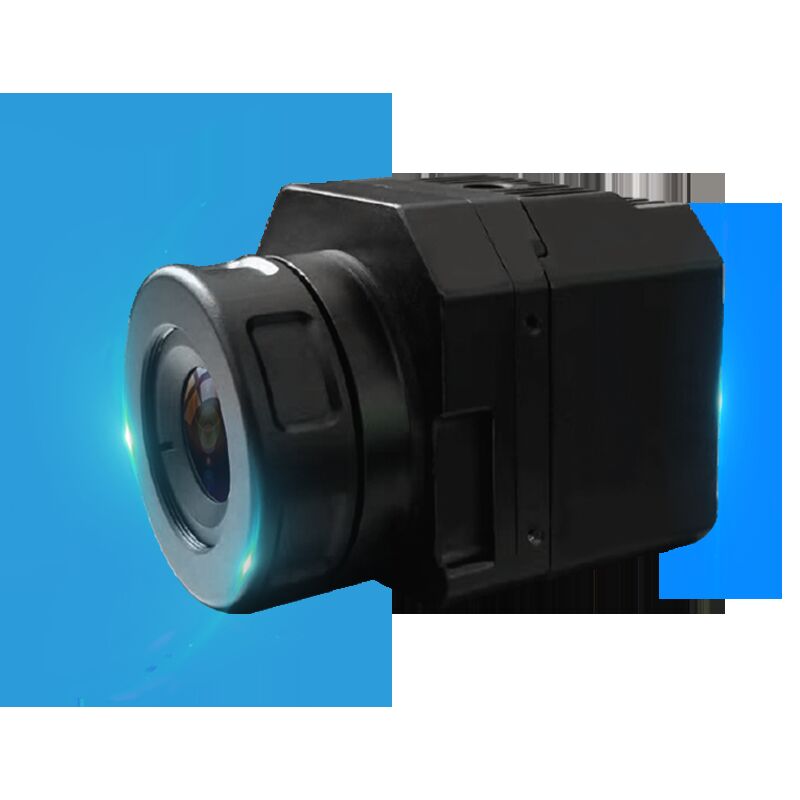

High Resolution Online Infrared Thermal Camera Temperature Measurement Solution

Brand Name:	TOPRIE
Model Number:	HM
MOQ:	1 piece
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100 pieces per day

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Keywords:

Infrared Thermal Camera

Detection Type:

Uncooled Vanadium Oxide (VOx) Focal Plane Array Detector

Resolution:

640*512 Pixel / 384*288 Pixel

Range:

-20℃~600℃

Accuracy:

2% F.S Or +2℃

Dimension:

44.45*44.45*52.82mm

Pixel Pitch:

IFOV Mrad:

1.77 Mrad/6.8mm 0.92 Mrad/13mm 0.63 Mrad/19mm 0.48 Mrad/25mm 0.34 Mrad/35mm

View Angel/focus:

58.9°x48.6°/6.8mm 32.9°x26.6/13mm 22.9°x18.4°/19mm 17.5°x14.0°/25mm 12.5°x10.0°/35mm

Focusing Mode:

Fixed ( Auto Can Be Optional)

Thermal Sensitivity:

NETD 60mk@F/1,30C,50Hz

Frame Rate:

25Hz/50Hz

Digital Camera Pixel:

Expanded

A Digital Input, A Digital Output

Serial Port:

A RS485 Communication

Ethernet Network:

A Interface With 4

Packaging Details:

Packed in paper box

Supply Ability:

100 pieces per day

Highlight:

High Resolution Infrared Thermal Camera

Infrared Thermal Camera Temperature Measurement

High Resolution IR Thermal Camera
