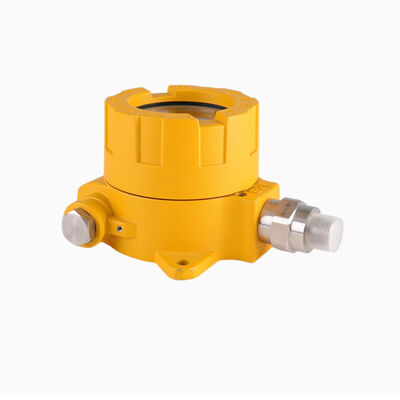

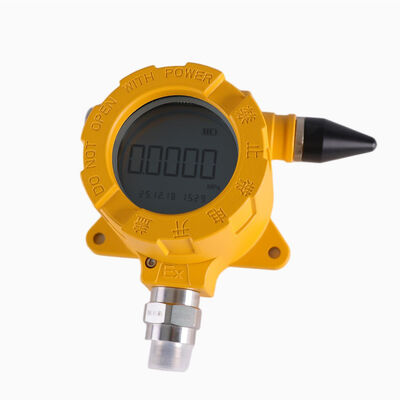

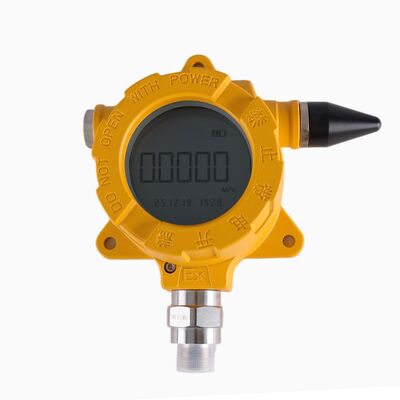

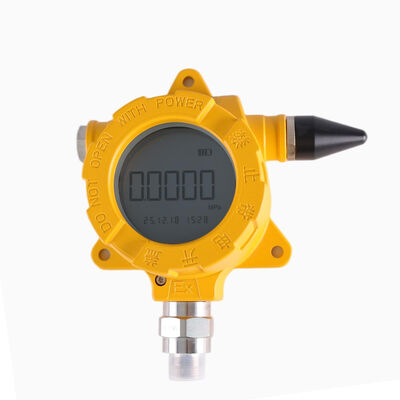

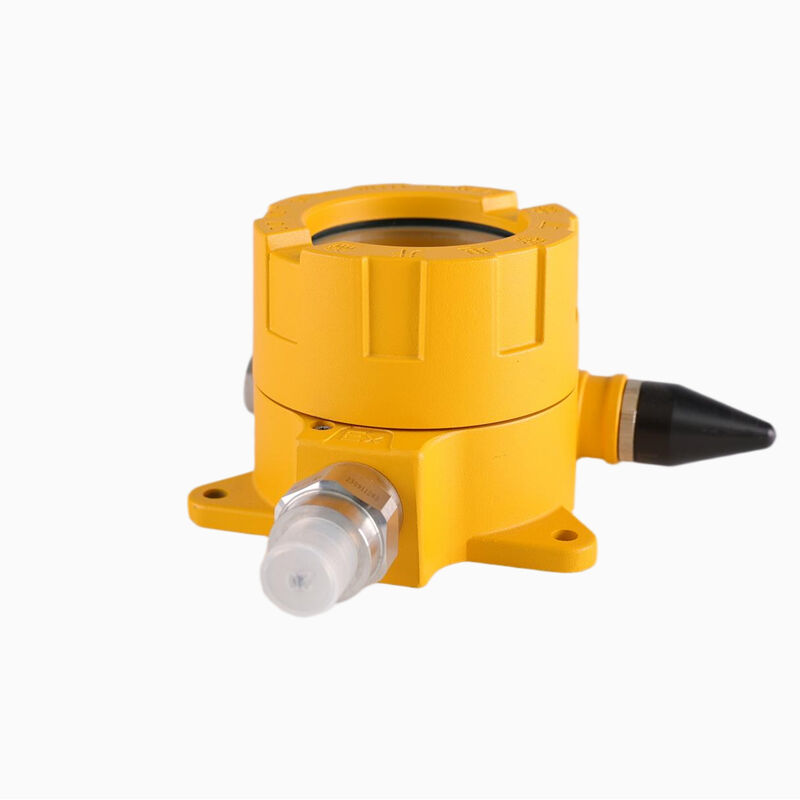

Smart 4G Wireless Pressure Transmitter Gauge Sensor Logger With Explosion Proof Housing

Brand Name: TOPRIE
Model Number: TP2401-EX
MOQ: 1 piece
Price: USD 195.00 ~ USD 249.00 per piece
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100 pieces per day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS
Accuracy:
0.5%FS(standard),0.25%FS,0.2%,etc.
Pressure Range:
-0.1 To 100MPa(Optional)
Communication Method:
RS485, Ethernet, WiFi, 4G, GSM, LoRa, LoRaWAN
With Smart IoT:
Support
Remote Configure:
Support
Packaging Details:
Packed in paper carton carton dimension 41*36.5*28cm
Supply Ability:
100 pieces per day
Highlight:

4G Wireless Pressure Transmitter

,

Smart Wireless Pressure Transmitter

Product Description
Smart 4G Wireless Pressure Transmitter Gauge Sensor Logger
TP2401-EX is a cutting-edge solution designed for remote pressure monitoring. Featuring a robust design with IP68 and explosion-proof housing, it provides accurate real-time data transmission via LoRa or 4G network, ensuring reliability in harsh conditions. With TOPRIE cloud platform support, it offers an ideal solution for wireless pressure monitoring in various industrial and environmental applications.
Smart 4G Wireless Pressure Transmitter Gauge Sensor Logger With Explosion Proof Housing 0
Technical Specifications
Explosion-Proof Wireless Pressure Sensor Parameters
Pressure Sensor Range 0~1.6MPa (default); (-0.1~60MPa optional), Support customize
Working Power Battery powered explosion-proof version 3.6V, 19Ah (External power supply and rechargeable version need to be specified)
Battery Life LORAWAN/LoRa communication: 5-6 years (data uploaded once hourly, stable signal)
4G/WIFI communication: 2-2.5 years (data uploaded once hourly, stable signal)
Battery model (non-rechargeable batteries, replaceable batteries)
Internal Battery With alarm function for low battery
Protection Level Explosion-proof model IP68, Ex ib IIB T4 Gb
Display TFT LCD screen
Power Consumption Standby current ≤80uA, average data transmission current ≤150mA
Network Standard WIFI, 4G/GSM(SIM card), LoRa (requires our LoRa gateway), RS485, LoRaWAN, NB-IOT, RS485, GPRS (optional)
Antenna External antenna
Installation Orientation Vertical or Horizontal
Sampling Interval Configurable time 10S~2550S
Configuration Configurable time 1min~1440min. Note: Shorter configuration time reduces battery life
Data Transmit Interval USB configuration operation, server remote configuration, Bluetooth configuration
Wake-up Mode Button, timing
Upload Information Pressure, temperature, battery level, signal, card number
Operating Temperature -30°C~70°C (medium does not crystallize) - contact us if temperature exceeds 70°C
Humidity 0-100%RH
Overload Pressure 200%FS(below 10MPa); 150%FS(25MPa)
Sensor Material Stainless steel housing with 316L pressure diaphragm
Measurement Accuracy 0.5% F.S (default), (0.2%FS, 0.1%FS optional)
Temperature Effect 0.015%F.S/°C
Interface Specifications Thread interface, M20*1.5 (thread can be customized)
Key Advantages
  • Wireless pressure monitoring and data logging
  • Smart IoT connectivity for remote access
  • Real-time data transmission capabilities
  • Long-range wireless communication
  • Battery-powered operation with extended life
  • Cloud-based data storage and analytics
  • Mobile and web application integration
  • Industrial-grade construction for harsh environments
Applications
Petroleum pipeline networks, natural gas pipeline networks, Water and Wastewater Management, Fire System, Smart Agriculture, Oil and Gas Monitoring, Building Management Systems, and other flammable and explosive atmospheres.
Frequently Asked Questions
What is the measurement range of the pressure sensor?
The pressure measurement range of the TP2401 is from -0.1 MPa to 100 MPa
What is the measurement accuracy of the pressure sensor?
The default pressure measurement accuracy is 0.5% F.S, with optional accuracies of 0.2% F.S and 0.1%F.S
What communication methods does the wireless pressure gauge support?
Supports 4G, 5G, Wi-Fi, LoRa, NB-IoT, LoRaWAN, and RS485 communication methods
How long is the battery life of the TP2401?
4G version: 2.5 years (default settings); NB-IoT/LoRa versions: 5 years
What is the protection rating of the TP2401?
Waterproof variant: IP66 (general outdoor use); Explosion-proof variant: IP67 (outdoor/underground use)
What is the sampling frequency of the TP2401?
Configurable from 10 seconds to 2550 seconds, default 60 seconds
What is the upload frequency of the TP2401?
Configurable from 1 minute to 1440 minutes (24 hours), default 60 minutes
What communication protocol is used for the 4G version?
Default MQTT protocol, with optional TCP protocol
Note: Real-world battery life may vary based on environmental conditions and configuration settings. Explosion-proof variant certified for hazardous environments including mining operations.
