| Brand Name: | TOPRIE |
| Model Number: | TP2402 |
| MOQ: | 1 piece |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 pieces per day |

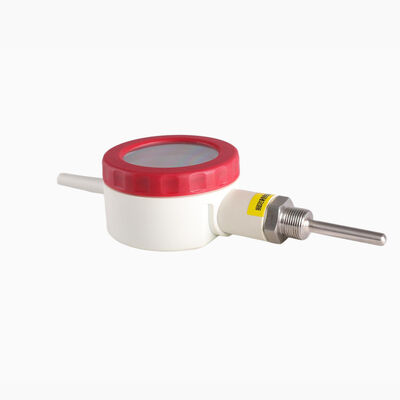

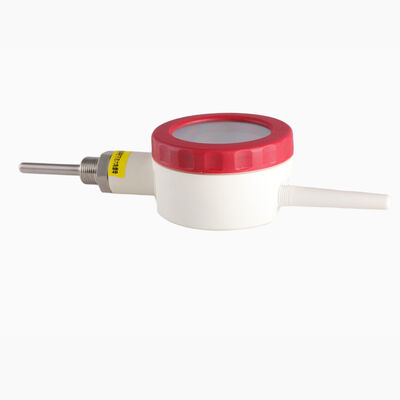

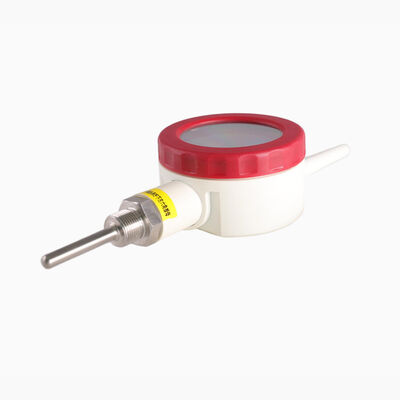

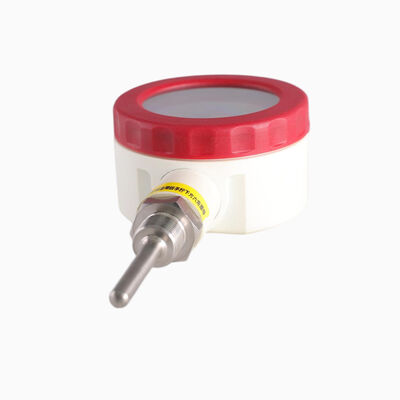

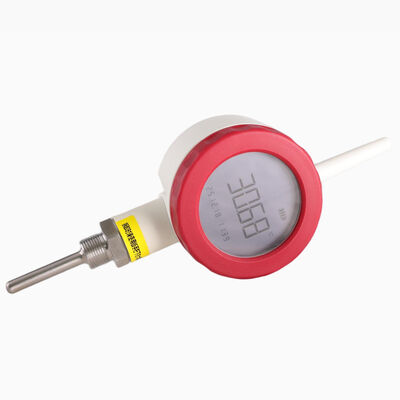

China Supplier Digital Temperature Gauge 4G LoRaWAN Temperature Sensor Logger Smart Wireless Temperature Transmitter
TP2402 wireless thermometer is equipped with 4G WIFI network to realize stable connection with the monitoring platform. It allows convenient parameter configuration via USB port and secure data export in PDF and CSV formats for traceability. The device supports automatic over-limit alarm (instant upload once parameters exceed the set range) and manual sensor value calibration to ensure data accuracy.
| Range | -200℃~200℃ |
| Accuracy | 0.5%F.S |
| Battery Capacity | 19000mAh non rechargeable lithium battery |
| Protection Level | IP66 |
| Display | TFT |
| Power Consumption | Standby current ≤80uA, average data transmission current ≤150mA1 |
| Communication | 4G,WiFi,LoRaWAN,LoRa,NB-IoT |
| Antenna | External |
| Installation | Vertical,Horizontal |
| Sampling Interval Time | 10 sec~2550 sec |
| Uploaded Interval Time | 1 Min~1440Mins, the shorter of Uploaded time you setup, the shorter lifetime of battery |
| Configuration | USB C,Bluetooth |
| Wake-up Mode | Button,timing |
| Uploaded Data Information | Temperature, Battery Level, Signal, SIM card |
| Material | Housing part Aluminum alloy, Sensor part: SS304 |
| Process connection | NPT1/2,M20*1.5,BSP1/2 ect.. |

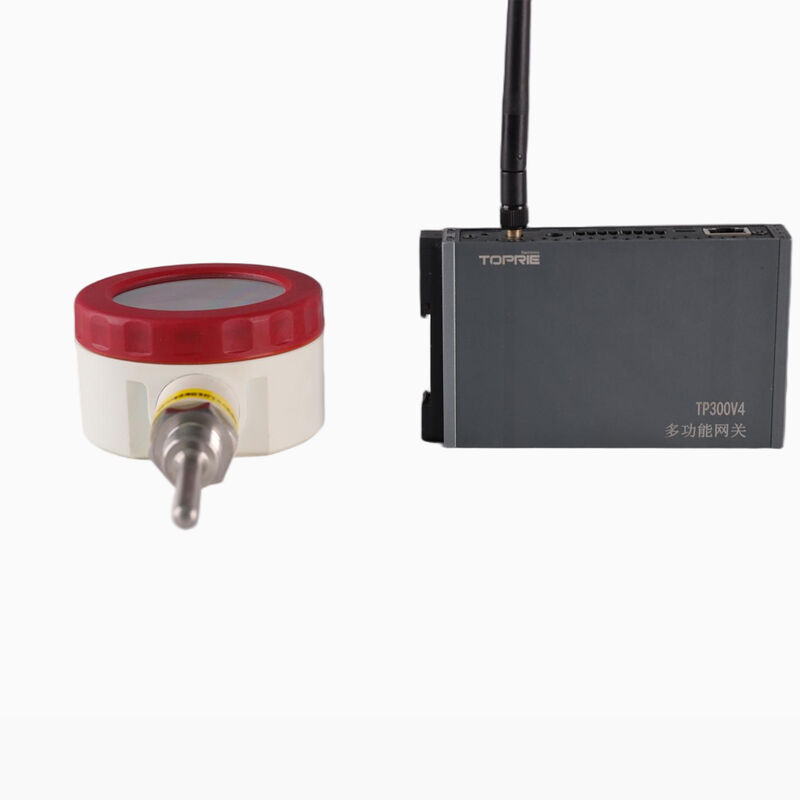

| 1.TP300 is a multifunctional data transmission, monitoring and management host | ||
| It is a product with small size, easy installation and multiple interfaces | ||
| 2. Standard Ethernet, RS485, type-C communication port | ||
| You can choose zigbee, LoRa, WIFI, 4G and other communication methods | ||
| 3. The host can meet up to 256 channels of data acquisition | ||
| Product model | Model Description | Model Description |
| TP300-A/Z/L | RS485, Zigbee, LoRa Receiver Host | Standard RS485 two-way (one master and one slave) Ethernet communication, TYPE-C interface |
| RS485, Ethernet Upload | ||
| TP300-A/Z/L-4G | RS485, Zigbee, LoRa Receiver Host | |
| 4G Upload | ||
Advantage
Wireless stable connection, cloud data sync
USB local config & export, easy operation
PDF/CSV dual formats, easy data traceability
Instant over-limit upload, timely alarm
Sensor value calibration, sustained accuracy
Wireless flexible deployment, multi-scenario fit
Application
