| Brand Name: | TOPRIE |
| Model Number: | TP630 |
| MOQ: | 1 piece |
| Price: | USD 140.00~USD 290.00 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 pieces per day |

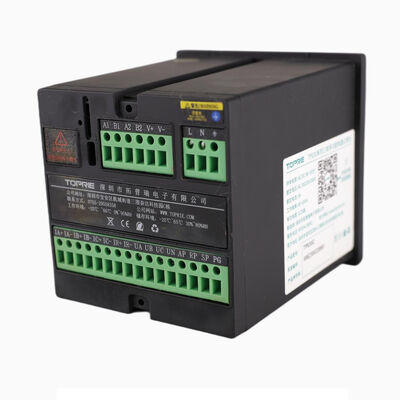

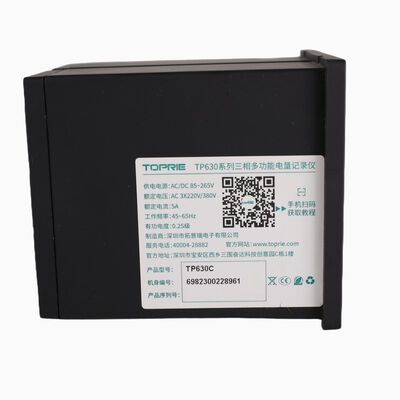

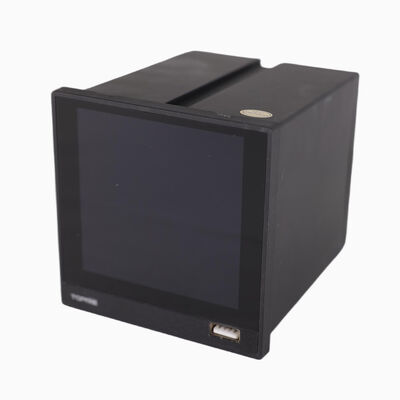

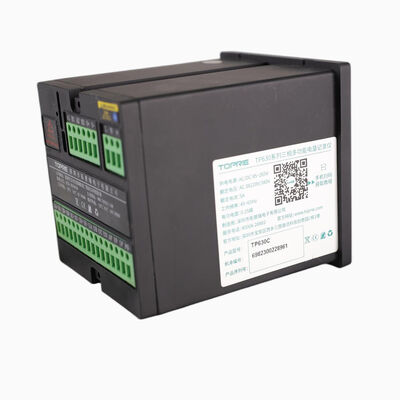

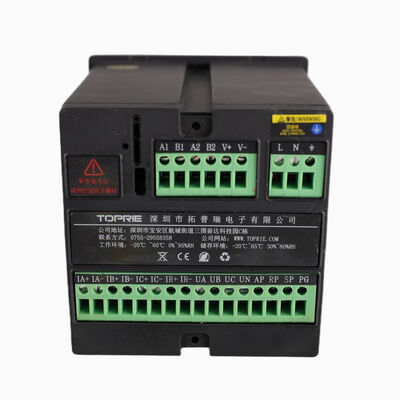

Touch Screen 8G Memory Digital Panel Meter Energy Meter
USB Multifunction Meter with Real-time Monitoring & Advanced Analytics
An energy meter is an electrical device measuring the amount of electrical power consumed. This device allows the determination of energy consumption over a certain time, whether a residential building, a business, or an electrically powered device. It provides detailed information on consumption to reduce electricity bills and increases knowledge about the status of the electricity grid, improving its performance and the quality of service for customers.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | AC100V~265V |
| Wire Method | 3 phase 3 wire, 3 phase 4 wire |
| Voltage Range | L-N 30V~264V / L-L 52V~460V |
| Voltage Overload | Continuous 1.2 times, instantaneous: 2 times for 10 sec |
| Voltage Power Consumption | <1VA per phase |
| Voltage Resistance | ≥300KΩ |
| Accuracy Class | RMS Measurement, Class 0.2s |
| Current Range | AC0.025A~5A |
| Current Overload | Continuous 1.2 times, instantaneous: 2 times for 10 sec |
| Current Power Consumption | 0.4VA per phase |
| Frequency | 40Hz~65Hz accuracy: 0.01Hz |
| Power Consumption | 7VA |
| Action Delay Time | 1~60sec continuous adjust |
| Nominal Voltage | AC10V~460V |
| Nominal Current | AC0.02A~5A |
| Measuring Accuracy |
Room Temperature: Frequency 0.01Hz, voltage & current class 0.2, power rate class 0.5, active energy class 0.2, reactive energy class 2
-20℃~60℃: Frequency 0.01Hz, voltage & current class 0.5, power rate class 0.5, active energy class 0.2, reactive energy class 2
|
| Switch Quantities Input | One channel, photocoupler isolated for passive dry contact; input type: internally wetted |
| Switch Quantities Output | One channel, electromagnetic relay output; contact capacity: 5A continuous, 250V AC/5A DC30V/5A |
| Protocol Support | Modbus RTU MQTT DLT645 Custom protocols available |
| Communication Options | 4G WiFi LoRa LoRaWAN |
| Installation Method | Embedded type |

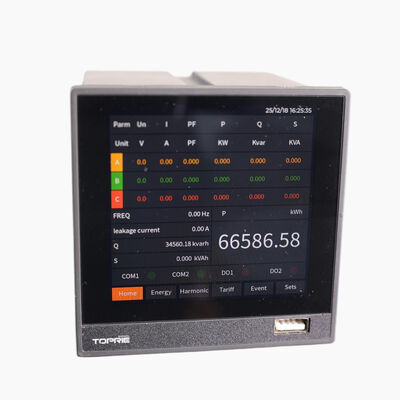

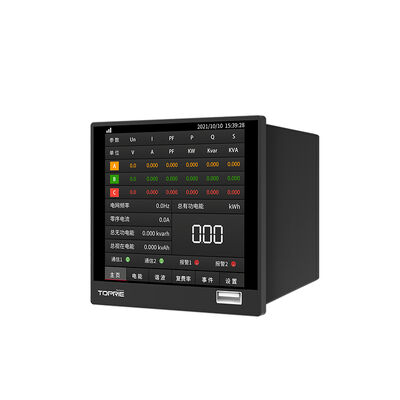

| Display | LCD Color capacitive touch screen |
| Energy Measurement | Active energy 0.2s / Reactive energy 0.2s |
| Operating Environment | -20℃~60℃ RH 5%~85% (no condensing) |
| Transport & Storage Temperature | -25℃~70℃ |
| Dimensions | 96×96×109mm |
| Weight | 509g |
| Material | ABS |
| Fireproof Level | V0 |
Key Features
Applications
Energy meter application in different fields, including:
