OEM Power Quality Analyzers Power Quality Meter Smart Electric Meter

Brand Name:	TOPRIE
Model Number:	TP630H
MOQ:	1 piece
Price:	USD 500.00~ USD 600.00 per piece
Payment Terms:	Western Union,MoneyGram,T/T,D/P,D/A,L/C
Supply Ability:	100 pieces per day

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE ROHS

Keywords:

Power Quality Analyzer

Color:

Black

Communication:

4G,WiFi,RJ45,RS485

Protocol:

MQTT, Modbus TCP,Modbus RTU

Warranty:

12 Months

OEM:

Available

Transient Energy Quality:

40μs

SEQ Record:

512 Pieces Of Message Resolution 1ms

PQ Record:

512 Pieces Of Message Resolution 1ms

Memory:

8GB

Waveform Sampling Rate:

512 Points /period

Packaging Details:

packed in paper carton

Supply Ability:

100 pieces per day

Highlight:

OEM Power Quality Analyzers

Power Quality Meter Smart

60Hz Smart Electric Meter

Product Description

Energy Consumption Management, Electrical Power Safety, Power Quality, Free Cloud Platform for Data Monitoring, Analysis and Alarm

Power quality analyzer is an instrument that is used when performing power quality measurements. This instrument is used for measuring and analyzing various aspects of an electrical power supply for extended periods of time, such as wave sampling rate, THD, TOU, Voltage deviation, fluctuation, transient capture, flicker record etc.

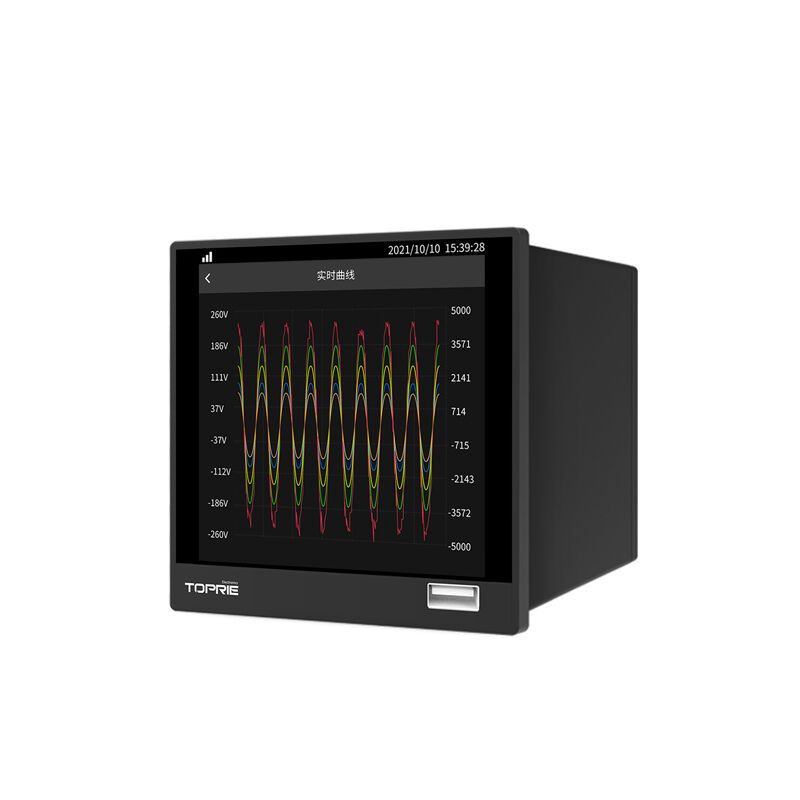

OEM Power Quality Analyzers Power Quality Meter Smart Electric Meter 0

Technical Parameters

Parameter	Specification
Power supply	85V~265VAC/DC 50HZ, 24V DC
Power consumption	<10W
Nominal voltage	57.7V/110V, 220V/380V, 400V/690V (Support 57.7V~400V L-N)
Accuracy (Voltage)	5V~2 times Un
Start value (Voltage)	4V
Frequency	50Hz or 60Hz
Power consumption (Voltage circuit)	<0.5VA phase
Signal wiring method	Direct wire / Indirect wire
Nominal current	5A
Accuracy (Current)	0.01In~4 times In
Start value (Current)	0.001In
Power consumption (Current circuit)	5A configuration <0.5VA phase
Switch quantities input	4 channel DI (optional)
Relay output	DO1, DO2
Connecting capacity	5A continuous, 250VAC / 30VDC
Disconnected capacity	LR=40ms, 10000 times 220VDC, 0.1A 110VDC, 0.3A 48V DC, 1A
Action time	<10ms
Return time	<10ms
Type	Normal open/close contact
Energy pulse output	3200imp/KWH
DC analog input	1 channel AO (optional)
Input range (Analog)	4mA-20mA
4 channel NTC temperature measurement	-40℃~150℃ ±1℃
Environment temperature	-25℃~70℃
Storage temperature	-40℃~80℃
Relative Humidity	5%~95%
Atmospheric pressure	63kpa~110kpa
Altitude	<4000m
Voltage circuit withstand	2 times rated voltage continuous, 4 times rated voltage allowed 1s
Current circuit withstand	4 times rated current continuous, 10 times rated current allowed 1s

Key Advantages

Class A Power Quality Measurement Complies with EU & US standards

High Sampling Rate 512 samples/cycle for accurate measurement

Large Memory Capacity 8GB internal memory for event waveform recording

Comprehensive Harmonic Analysis Measures harmonics from 2nd to 63rd (including THD, TDD)

Standards Compliance In accordance with DIN EN 50160

Advanced Display Colorful touch TFT screen for easy operation

Fast Response Time 40µs for transient disturbance record

Advanced Diagnostics Supports voltage sag, harmonic source, flicker source location

Multiple Inputs 3 current and voltage inputs

Communication Support Supports Modbus RTU and TCP

Robust Design Ride through voltage sags / voltage interruption with built-in energy storage

I/O Capabilities 4 digital input / 2 relay output

Application Fields

Energy Efficiency Analysis Analyze and optimize power consumption of industrial machinery, HVAC systems, and appliances

Power Quality Monitoring Detect voltage sags, surges, harmonics, and flickers affecting equipment performance

R&D and Testing Test new electrical devices for performance and regulatory compliance

Electric Vehicle Charging Stations Monitor power usage in EV charging infrastructure

Manufacturing Test production lines and machinery for safe and efficient operation

Renewable Energy Systems Analyze performance of solar panels and wind turbines

Consumer Electronics Testing Ensure devices meet energy consumption standards

Grid Monitoring Monitor power supply networks for stability and efficiency

F A Q

Q: What is warranty of your energy meter?

A: The warranty is 12 months. If you need to extend the time, welcome to contact us for more details.

Q: What is the MOQ (minimum order quantities)?

A: Normally, our brand (Toprie) is without MOQ. If you want to customize your brand, there will be a MOQ of 100 pcs.

Q: What is the communication protocol of your energy meter?

A: 4G WiFi supports MQTT (non-encryption). RS485 supports Modbus RTU. If you want to customize the protocol, please let us know and we will meet your requirements.

Q: What is your lead time?

A: Sample time 3-5 working days. Massive orders will depend on your order quantities and other requirements.

Q: Are you a manufacturer? Where is your factory?

A: Yes, we are a manufacturer located in Shenzhen City. Welcome to visit us.

Note: All specifications are subject to change without prior notice. For the most updated information, please contact our technical support team.
