MQTT Intelligent Pressure Transmitter 4G Wireless Pressure Gauge 0-5000psi Pressure Sensor Data Logger

Brand Name: TOPRIE
Model Number: TP2401-EX
MOQ: 1 piece
Price: USD 195.00 ~ USD 249.00 per piece
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100 pieces per day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS
Pressure Sensor Range:
Support Customize
Humidity:
0-100%RH
Application:
Pipeline Networks
Protection Level:
IP68
Packaging Details:
Packed in paper carton carton dimension 41*36.5*28cm
Supply Ability:
100 pieces per day
Highlight:

MQTT Intelligent Pressure Transmitter

,

4G Wireless Pressure Gauge

,

5000psi Pressure Sensor Data Logger

Product Description

Smart Pressure Wireless Data Logger Transmitter Sensor With Smart IoT

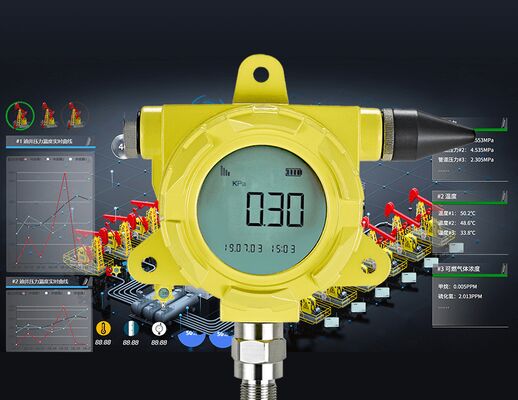

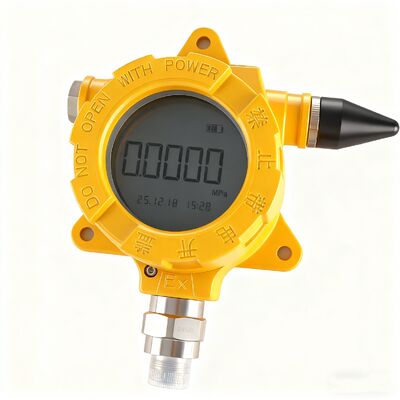

TP2401-EX is a cutting-edge solution designed for remote pressure monitoring. Featuring a robust design with IP68 and explosion-proof housing, it provides accurate real-time data transmission via LoRa or 4G network, ensuring reliability in harsh conditions. With TOPRIE cloud platform supported, it offers an ideal solution for wireless pressure monitoring in various industrial and environmental applications.

MQTT Intelligent Pressure Transmitter 4G Wireless Pressure Gauge 0-5000psi Pressure Sensor Data Logger 0

Technical Data
Explosion-Proof Wireless Pressure Sensor Parameters
Pressure Sensor Range0~1.6MPa (default); (-0.1~60MPa optional), Support customize.
Working powerBattery powered explosion-proof version 3.6V, 19Ah (External power supply and rechargeable version need to be specified)
Battery lifeLORAWAN/ LoRa communication: 5-6 years (data is uploaded once an hour, with a stable signal);
4G/WIFI communication: 2-2.5 years (data is uploaded once an hour, with a stable signal);
Battery model (non-rechargeable batteries, replaceable batteries);
Internal batteryWith alarm function of low battery
Protection levelExplosion-proof model IP68, Ex ib IIB T4 Gb
DisplayTFT LCD screen
Power consumptionStandby current ≤80uA, average data transmission current ≤150mA1
Network StandardWIFI, 4G/GSM(SIM card), LoRa (Need use our LoRa gateway), RS485,LoRaWAN, NB-IOT, RS485, GPRS (optional)
AntennaExternal antenna
Installation OrientationVertical or Horizontal
Sampling intervalConfigurable time is 10S~2550S
ConfigurationConfigurable time is 1min~1440min. Note: The shorter of configurable time, the shorter usage of battery life
Data transmit intervalUSB configuration operation, server remote configuration, Bluetooth configuration
Wake-up modeButton, timing
Upload informationPressure, temperature, battery level, signal, card number
Operating temperature-30°C~70°C (medium does not crystallize)once temp over 70°C, pls tell us.
Humidity0-100%RH
Overload pressure200%FS(below 10MPa);150%FS(25MPa)
Sensor materialThe sensor housing is made of stainless steel and the pressure diaphragm is 316L
Measurement accuracy0.5% F.S (default), (0.2%FS, 0.1%FS optional)
Temperature Effect0.015%F.S/°C
Interface specificationsThread interface, M20*1.5 (thread can be customized)
Advantages
  • Wireless pressure monitoring and data logging
  • Smart IoT connectivity for remote access
  • Real-time data transmission capabilities
  • Long-range wireless communication
  • Battery-powered operation with extended life
  • Cloud-based data storage and analytics
  • Mobile and web application integration
  • Industrial-grade construction for harsh environments
Application

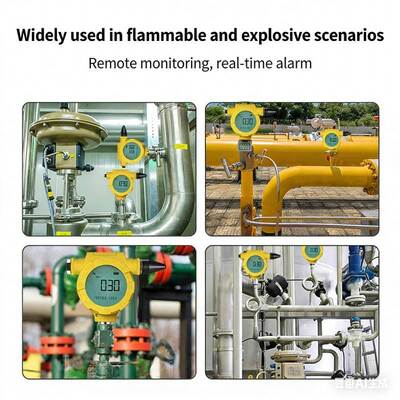

Petroleum pipeline networks, natural gas pipeline networks, Water and Wastewater Management, Fire System, Smart Agriculture, Oil and Gas Monitoring, Building Management Systems, and other flammable and explosive atmospheres.

FAQ
Q: What is the measurement range of the pressure sensor?
A: The pressure measurement range of the TP2401 is from -0.1 MPa to 100 MPa
Q: What is the measurement accuracy of the pressure sensor?
A: The default pressure measurement accuracy is 0.5% F.S, with optional accuracies of 0.2% F.S and 0.1%F.S
Q: What communication methods does the wireless pressure gauge support?
A: Supports 4G, 5G, Wi-Fi, LoRa, NB-IoT, LoRaWAN, and RS485 communication methods
Q: How long is the battery life of the TP2401?
A: 4G version: 2.5 years (default settings); NB-IoT/LoRa versions: 5 years
Q: What is the protection rating of the TP2401?
A: Waterproof variant: IP66 (general outdoor use); Explosion-proof variant: IP67 (outdoor/underground use)
Q: What is the sampling frequency of the TP2401?
A: Configurable from 10 seconds to 2550 seconds, default 60 seconds
Q: What is the upload frequency of the TP2401?
A: Configurable from 1 minute to 1440 minutes (24 hours), default 60 minutes
Q: What communication protocol is used for the 4G version?
A: Default MQTT protocol, with optional TCP protocol
Note: Real-world battery life may vary based on environmental conditions and configuration settings. Explosion-proof variant certified for hazardous environments including mining operations.
