| Brand Name: | Toprie |
| Model Number: | TP2401-EX |
| MOQ: | 1 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

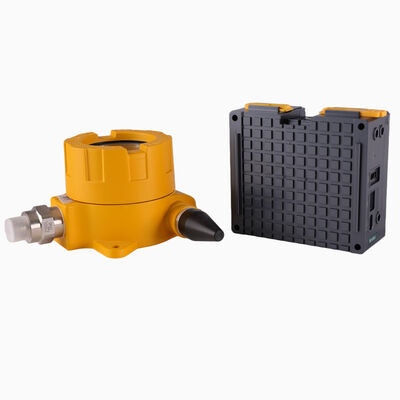

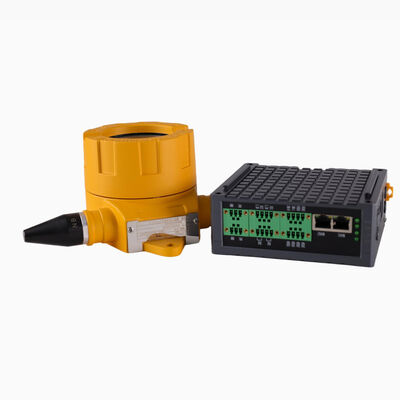

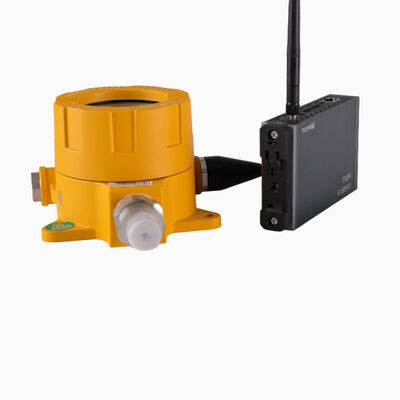

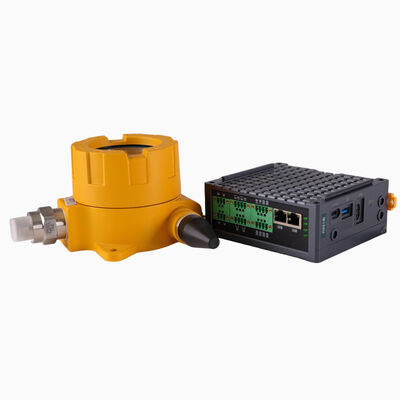

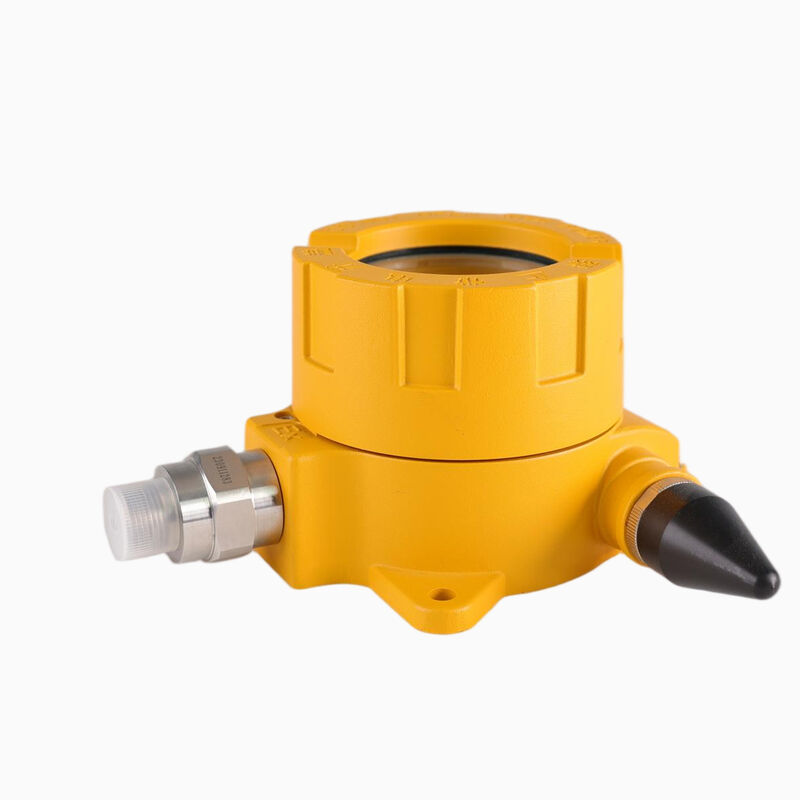

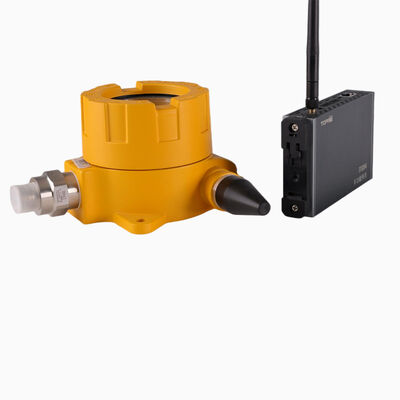

Advanced wireless pressure monitoring solution with integrated IoT capabilities for real-time data collection, transmission, and analysis in industrial applications.
| Product Name | Wireless pressure sensor |
| Working power | Battery powered explosion-proof version 3.6V, 19Ah (External power supply and rechargeable version need to be specified) |
| Battery life | LORAWAN/ LoRa communication: 5-6 years (data is uploaded once an hour, with a stable signal) |
| 4G/WIFI communication: 2-2.5 years (data is uploaded once an hour, with a stable signal) | |
| Battery model (non-rechargeable batteries, replaceable batteries) | |
| Internal battery | With alarm function of low battery |
| Display | TFT LCD screen |
| Power consumption | Standby current ≤80uA, average data transmission current ≤150mA1 |
| Network Standard | WIFI, 4G/GSM(SIM card), LoRa (Need use our LoRa gateway), RS485,LoRaWAN, NB-IOT, RS485, GPRS (optional) |
| Antenna | External antenna |
| Sampling interval | Configurable time is 10S~2550S |
| Configuration | Configurable time is 1min~1440min. Note: The shorter of configurable time, the shorter usage of battery life |
| Data transmit interval | USB configuration operation, server remote configuration, Bluetooth configuration |
| Wake-up mode | Button, timing |
| Upload information | Pressure, temperature, battery level, signal, card number |
| Operating temperature | -30°C~70°C (medium does not crystallize)once temp over 70°C, pls tell us. |
| Humidity | 0-100%RH |
| Measuring range | 0~1.6MPa (default); (-0.1~60MPa optional), Support customize. |
| Overload pressure | 200%FS(below 10MPa);150%FS(25MPa) |
| Sensor material | The sensor housing is made of stainless steel and the pressure diaphragm is 316L |
| Measurement accuracy | 0.5% F.S (default), (0.2%FS, 0.1%FS optional) |
| Temperature Effect | 0.015%F.S/°C |
| Interface specifications | Thread interface, M20*1.5 (thread can be customized) |
| Protection level | Explosion-proof model IP68, Ex ib IIB T4 Gb |
