| Brand Name: | TOPRIE |
| Model Number: | TP2401-EX |
| MOQ: | 1 piece |
| Price: | USD 195.00 ~ USD 249.00 per piece |
| Payment Terms: | L/C,D/P,D/A,T/T,Western Union |
| Supply Ability: | 100 pieces per day |

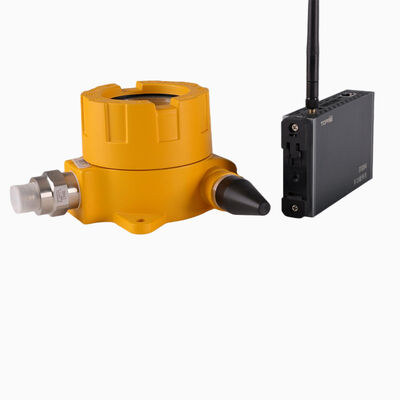

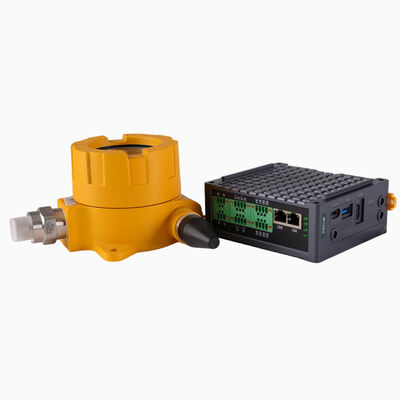

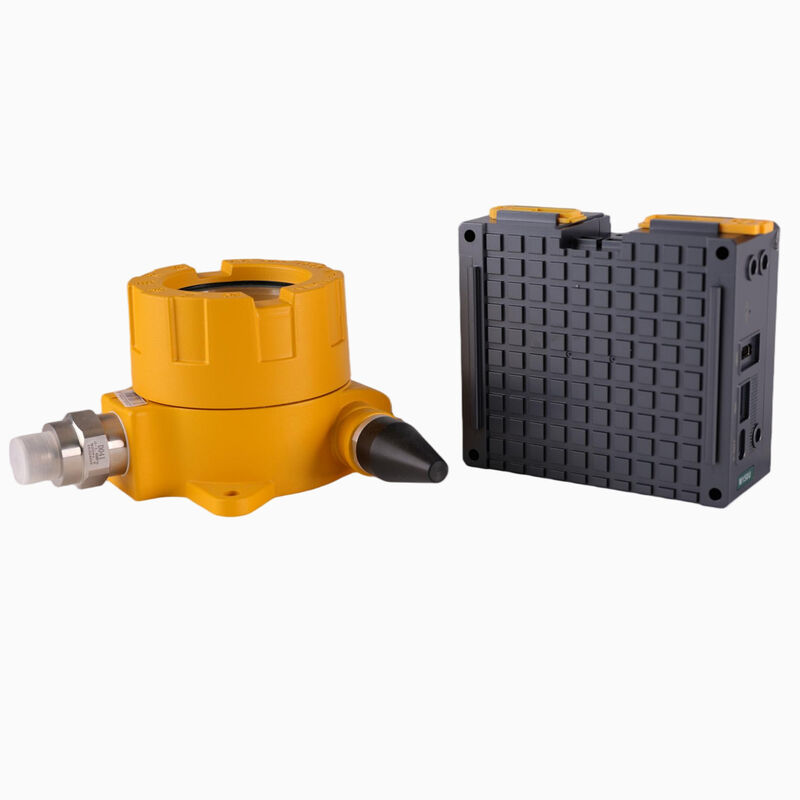

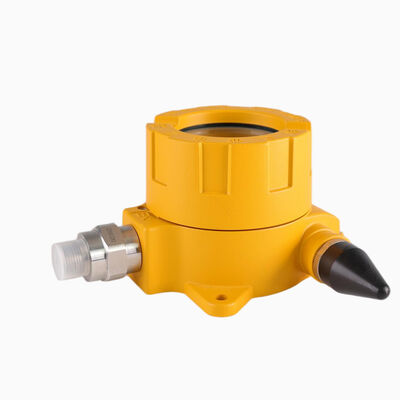

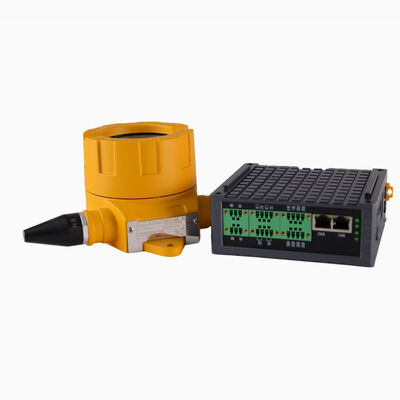

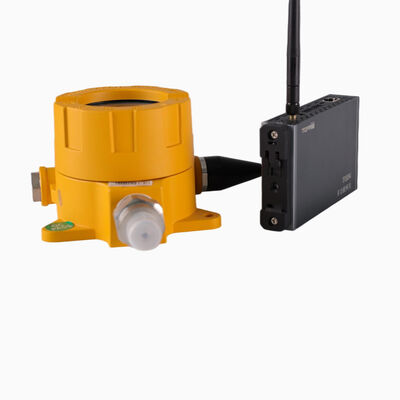

Smart Pressure Wireless Data Logger Transmitter Sensor With Smart IoT
| Explosion-Proof Wireless Pressure Sensor Parameters | |
|---|---|
| Pressure Sensor Range | 0~1.6MPa (default); (-0.1~60MPa optional), Support customize. |
| Working power | Battery powered explosion-proof version 3.6V, 19Ah (External power supply and rechargeable version need to be specified) |
| Battery life | LORAWAN/ LoRa communication: 5-6 years (data is uploaded once an hour, with a stable signal); 4G/WIFI communication: 2-2.5 years (data is uploaded once an hour, with a stable signal); Battery model (non-rechargeable batteries, replaceable batteries); |
| Internal battery | With alarm function of low battery |
| Protection level | Explosion-proof model IP68, Ex ib IIB T4 Gb |
| Display | TFT LCD screen |
| Power consumption | Standby current ≤80uA, average data transmission current ≤150mA1 |
| Network Standard | WIFI, 4G/GSM(SIM card), LoRa (Need use our LoRa gateway), RS485,LoRaWAN, NB-IOT, RS485, GPRS (optional) |
| Antenna | External antenna |
| Installation Orientation | Vertical or Horizontal |
| Sampling interval | Configurable time is 10S~2550S |
| Configuration | Configurable time is 1min~1440min. Note: The shorter of configurable time, the shorter usage of battery life |
| Data transmit interval | USB configuration operation, server remote configuration, Bluetooth configuration |
| Wake-up mode | Button, timing |
| Upload information | Pressure, temperature, battery level, signal, card number |
| Operating temperature | -30°C~70°C (medium does not crystallize)once temp over 70°C, pls tell us. |
| Humidity | 0-100%RH |
| Overload pressure | 200%FS(below 10MPa);150%FS(25MPa) |
| Sensor material | The sensor housing is made of stainless steel and the pressure diaphragm is 316L |
| Measurement accuracy | 0.5% F.S (default), (0.2%FS, 0.1%FS optional) |
| Temperature Effect | 0.015%F.S/°C |
| Interface specifications | Thread interface, M20*1.5 (thread can be customized) |
| Product name | Edge computing IIot gateway | |
| Processor | CPU | Quadura core main frequency 1.5GHz |
| RAM | Memory | LPDDR4 2GB |
| I/O interface | Storage | 8G eMMC support TF card |
| USB host | 2 channel high speed USB HOST (Type A and Type-C) | |
| Ethernet | 2 channel WLAN port, (10/100/1000Mbps self-adaptive) | |
| WIFI | IEEE 802.11b/g/n | |
| 4G | Contact sales for configuration | |
| Serial interface | 1 channel RS232, 3 channel RS485 | |
| CAN bus | 1 channel | |
| HDMI | 1 channel HDMI output support 4K 60fps output | |
| PLC | Time storage HYM8563 | |
| Electrical | Power supply | DC 10.5V ~28V |
| Power protection | Reverse protection, wrong wire protection | |
| Power consumption | <5W | |
| Withstand voltage | 500VAC (1 min) | |
| Insulation resistance | over 500Ω (500VDC) | |
| Anti-vibration | -10~25Hz(X,Y,Z direction 2G /30 min) | |
| Operation environment | Working temperature | -20 ~ 60 ºC |
| storage environment | -30 ~ +70ºC | |
| Environment humidity | 10-90%RH (no condensing) | |
| Cold method | Natural wind cold | |
| Structure | Body shell material | ABS |
| Fireproof class | V0 | |
| Dimension | 120.55*133*51.5mm | |
| Installation method | GB C45 din rail | |
| Protection level | IP20 | |
| Weight | 500g | |
| System | Ubuntu20.04lts | |
| Software | WinIF 4.6 | |
Petroleum pipeline networks, natural gas pipeline networks, Water and Wastewater Management, Fire System, Smart Agriculture, Oil and Gas Monitoring, Building Management Systems, and other flammable and explosive atmospheres.
