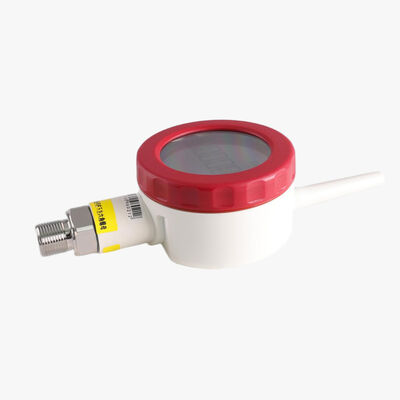

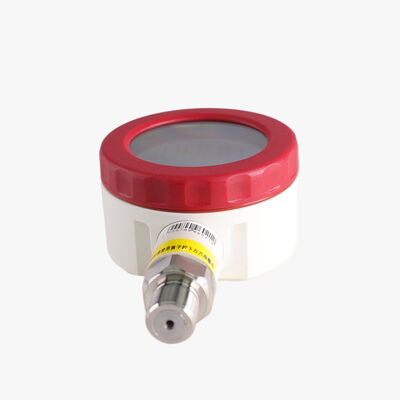

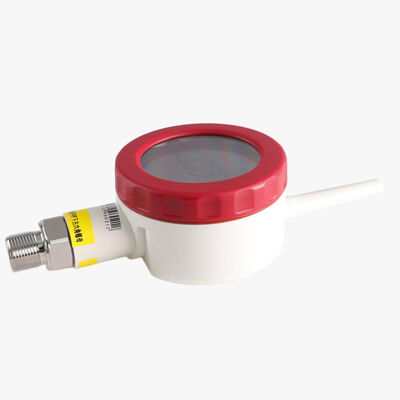

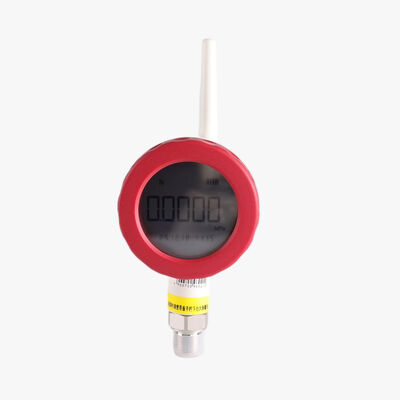

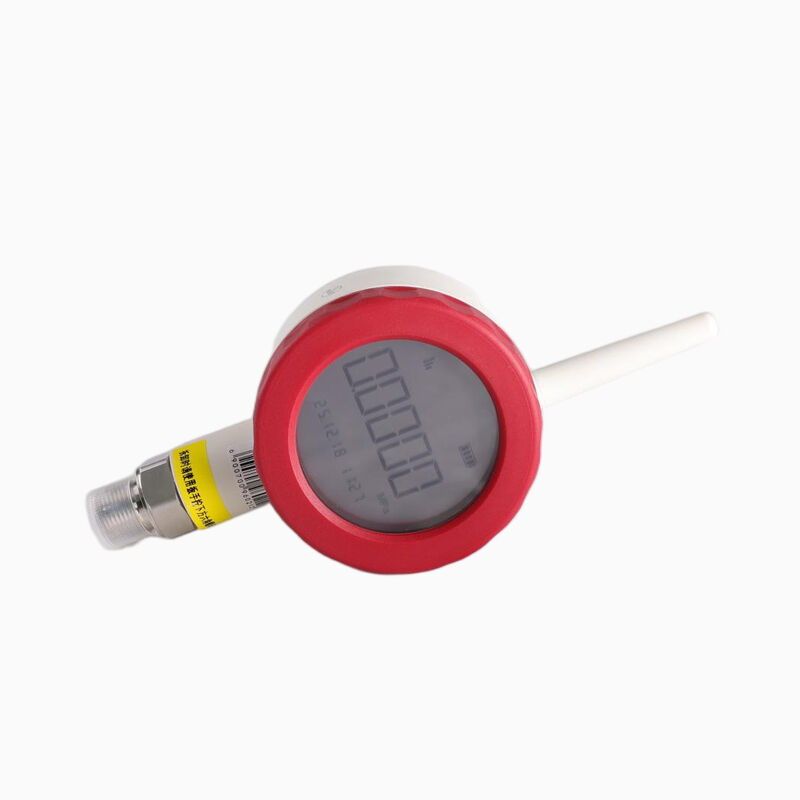

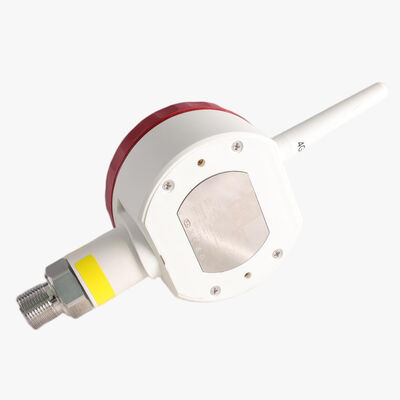

OEM Smart IoT Pressure Transducer / Pressure Sensor For Water Oil Gas

Brand Name:	TOPRIE
Model Number:	TP2401
MOQ:	1 piece
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability:	100 pieces per day

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Document:

Keywords:

Waterproof Pressure Transmitter

Range:

-100Kpa……0……100Mpa

Accuracy:

0.5%F.S/0.2%F.S/0.1% F.S

Material:

Housing Part: ABS+PC, Sensor Part: Stainless Steel SS304

Battery Capacity:

17000mAh Non Rechargeable Lithium Battery(Battery Can Be Replaced)

Communication:

4G,WiFi,LoRa,LoRaWAN,RS485,NB-IoT

Protocol:

MQTT(non Encryption),TCP/IP, Modbus RTU, Private Protocol

LoRaWAN Band:

CN470,EU868,US915,AU915,AS923 Etc..

Uploaded Information:

Temperature, Pressure, Battery Percentage, Battery Voltage, Signal, SIM Information

Available

Warranty:

12 Months

Packaging Details:

Packed in paper carton

Supply Ability:

100 pieces per day

Highlight:

Gas IoT Pressure Transducer

OEM IoT Pressure Sensor

Smart Water Pressure Transducer Sensor

Product Description

Waterproof Pressure Gauge 4G Wireless GSM GPRS Pressure Transmitter Pressure Data Logger With GPS Function

TP2401 is a cutting-edge solution designed for remote pressure monitoring. Featuring a robust design with IP66 and waterproof housing, it provides accurate real-time data transmission via LoRa or 4G network, ensuring reliability in harsh conditions. With TOPRIE cloud platform supported, it offers an ideal solution for wireless pressure monitoring in various industrial and environmental applications.

OEM Smart IoT Pressure Transducer / Pressure Sensor For Water Oil Gas 0

Technical Data

WaterProof Wireless Pressure Sensor Parameters
Pressure Sensor Range	0~1.6MPa (default); (-0.1~60MPa optional), Support customize.
Working power	Battery powered explosion-proof version 3.6V, 19Ah (External power supply and rechargeable version need to be specified)
Battery life	LORAWAN/ LoRa communication: 5-6 years (data is uploaded once an hour, with a stable signal); 4G/WIFI communication: 2-2.5 years (data is uploaded once an hour, with a stable signal); Battery model (non-rechargeable batteries, replaceable batteries);
Internal battery	With alarm function of low battery
Protection level	Waterproof model IP66
Display	TFT LCD screen
Power consumption	Standby current ≤80uA, average data transmission current ≤150mA1
Network Standard	WIFI, 4G/GSM(SIM card), LoRa (Need use our LoRa gateway), RS485,LoRaWAN, NB-IOT, RS485, GPRS (optional)
Antenna	External antenna
Installation Orientation	Vertical or Horizontal
Sampling interval	Configurable time is 10S~2550S
Configuration	Configurable time is 1min~1440min. Note: The shorter of configurable time, the shorter usage of battery life
Data transmit interval	USB configuration operation, server remote configuration, Bluetooth configuration
Wake-up mode	Button, timing
Upload information	Pressure, temperature, battery level, signal, card number
Operating temperature	-30°C~70°C (medium does not crystallize)once temp over 70°C, pls tell us.
Humidity	0-100%RH
Overload pressure	200%FS(below 10MPa);150%FS(25MPa)
Sensor material	The sensor housing is made of stainless steel and the pressure diaphragm is 316L
Measurement accuracy	0.5% F.S (default), (0.2%FS, 0.1%FS optional)
Temperature Effect	0.015%F.S/°C
Interface specifications	Thread interface, M20*1.5 (thread can be customized)

Advantages

Wireless pressure monitoring and data logging
Smart IoT connectivity for remote access
Real-time data transmission capabilities
Long-range wireless communication
Battery-powered operation with extended life
Cloud-based data storage and analytics
Mobile and web application integration
Industrial-grade construction for harsh environments

Application

Petroleum pipeline networks, natural gas pipeline networks, Water and Wastewater Management, Fire System, Smart Agriculture, Oil and Gas Monitoring, Building Management Systems, and other flammable and explosive atmospheres.

FAQ

Q: What is the measurement range of the pressure sensor?

A: The pressure measurement range of the TP2401 is from -0.1 MPa to 100 MPa

Q: What is the measurement accuracy of the pressure sensor?

A: The default pressure measurement accuracy is 0.5% F.S, with optional accuracies of 0.2% F.S and 0.1%F.S

Q: What communication methods does the wireless pressure gauge support?

A: Supports 4G, 5G, Wi-Fi, LoRa, NB-IoT, LoRaWAN, and RS485 communication methods

Q: How long is the battery life of the TP2401?

A: 4G version: 2.5 years (default settings); NB-IoT/LoRa versions: 5 years

Q: What is the protection rating of the TP2401?

A: Waterproof variant: IP66 (general outdoor use); Explosion-proof variant: IP67 (outdoor/underground use)

Q: What is the sampling frequency of the TP2401?

A: Configurable from 10 seconds to 2550 seconds, default 60 seconds

Q: What is the upload frequency of the TP2401?

A: Configurable from 1 minute to 1440 minutes (24 hours), default 60 minutes

Q: What communication protocol is used for the 4G version?

A: Default MQTT protocol, with optional TCP protocol

Note: Real-world battery life may vary based on environmental conditions and configuration settings. Explosion-proof variant certified for hazardous environments including mining operations.
