| Brand Name: | TP613U |
| Model Number: | TP613U |
| MOQ: | 1 piece |
| Price: | USD50.00~109.00 per piece |
| Payment Terms: | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Supply Ability: | 100 pieces per day |

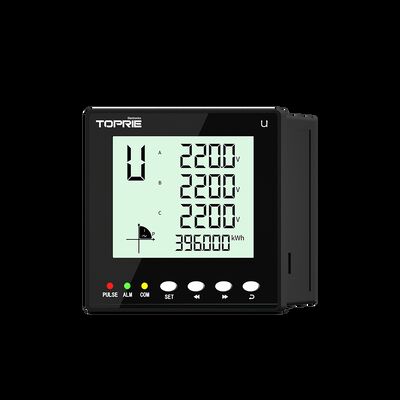

Power Current Voltage Measurement Electric Energy Panel Meter
|
Communication RS485(modbus RTU) Display LCD display Rated current 5A Accuracy RMS measurement Active energy:class 0.5 Power supply ADC100V~265V Consumption 3W |
|
|
Installation Panel mounted Embedded Dimension(L*W*H) Panel size(L*W) 96*96mm Open hole size(L*W)92*92m Housing(L*W*H)96*96*87mm Switch relay 2 channel DO and 2 channel DI |
|
Technical parameters
| Wire Method | 3 phase 3 wire, 3 phase 4 wire |
| Voltage Measuring Range | ADC65V~480V |
| Voltage Overload | 1.2 times instant 2 times per 10Sec |
| Voltage Consumption | <1VA per phase |
| Voltage Resistance | ≥300KΩ |
| Voltage Accuracy | RMS measurement,accuracy:class 0.2s |
| Current Measuring Range | AC0.015A~5A continous limit current:6A |
| Current Overload | Continutity:1.2 times instant:10 times per 10 Secs |
| Current Consumption | ＜0.4VA per phase |
| Current Resistance | ＜20mΩ |
| Current Accuracy | RMS measurement accuracy class 0.2s |
| Frequency Range | 40~65Hz accuracy 0.01Hz |
| Resdual Current | Range:0.01A~5A accuracy class 0.5s |
| Power | Active,reactive,apparent power, accuracy class 0.5s |
| Active Energy | Active energy accuracy class 0.5s reactive energy accuracy class 0.5s |
| Display | LCD Screen |
| Operation Voltage | AC/DC100V~265V |
| Consumption | 3W |
| Output Digital interface | RS485 Modbus RTU / MQTT |
| Pulse Output | 3 channel active energy pulse output,pulse constant 3200imp/kWh |
| Operation Environment | Temperature:-20℃~60℃ Humidity 5%~85% RH (No condensing)without corrosive gas,altitude<3000m |
| Transport and Save Environment | -25℃~70℃ |
| Isolation Voltage | Signal input and power supply 1600VAC,signal input and output 1600VAC, power and transmit output RS485 port,DI port,pluse output |
| Insulation | Input,output,power shell >5MΩ |
| Weight | 350g |
Intelligent panel meter is a device called an electricity meter,electrical meter, electric meter or kWh meter that measures the amount of electric energy consumed by a commercial business. main electrical parameters such as voltage, current,power factor,frequnecy ect. it can also analysis the quality of the electrical usage and is widely used in all kinds of areas, such as Power distribution cabinet, smart building, automation plant, hospital,shopping plaza, university ect..
FAQ
Q: What is warranty of your energy meter?
A:The warranty is 12 months, if you need to extend the time, welcome to contact us for more details.
Q:What is the MOQ(minimum order quantities) ?
A:Normally,our brand(Toprie) is without MOQ,if you want to customized your brand, there will be a MOQ 100 pcs.
Q:What is the communication protocol of your energy meter?
A:4G WiFi support MQTT(non encryption). RS485 support modbus RTU. if you want to customize the protocol, please do not hesitate to let us know and we will accord your requirements to meet your demand.
Q:What is your lead time?
A: Sample time 3-5 working days, massive orders will depends on your order quantities and other requirements.
Q:Are you a manufacturer? and Where is your factory?
A: Yes, we are a manufacturer and lived in Shenzhen City. welcome to come and visit us.
