| Brand Name: | TOPRIE |
| Model Number: | TP710B |
| MOQ: | 1 piece |
| Payment Terms: | Western Union,T/T,D/P,D/A,L/C |
| Supply Ability: | 100 pieces per day |

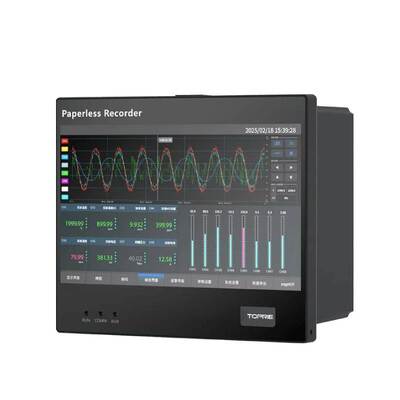

Colorful Touch Screen Data Acquisition Unit Modbus RTU RS485 Smart Data Logger K Type Temperature Pressure Voltage Current Analysis Recording Equipment Multifunction Paperless Recorder
TP710B multi-channel data logger supports engineering measurements such as temperature, voltage, current, electricity, pressure, liquid level, flow rate, and displacement. It offers free remote data monitoring and remote OTA program function upgrades.
| Name | Model | Description |
| Host | TP710B | 7 inches touch screen |
| Analog input data acquisition module | MT201 | 1S 8 CH multifunction data acquisition module |
| 2 pin themocouple socket temperature acquisition module | MT202 | 8CH 2 pin thermocouple temperature sensor 1s data acquisition card |
| NTC temperature sensor acquisition module | MT203 |
8CH,sampling speed:10time/sec, accuracy:10℃~50℃ ±0.2℃, other temperature range:0.5℃~2℃ temperature range:-40℃~125℃ temperature drift:<0.1℃ per year |
| Switch quantities input acquisition module | M210 | 8CH module can collect level or swith state of the signal,as well as signal frequency and count |
| Digital measuring input | MT220 | 1 wire type sensor, digital signal temperature,humidity, TP2305V2,TP2302V2 |
| Single phase power module | MT241 |
Single phase voltage,current,power, power factor,frequency,active energy, RMS measurement voltage:5V~1000V, current:10mA~20A, frequency:45Hz~400Hz, voltage, current accuracy:±0.2% |
| Three phase power module | MT240 | Three phase voltage,current,power, power factor,frequency,active energy |
| Relay output module | MT300 | 8 way NC/NO relay output, with load ability:10A 277VAC/ 12A 125VAC |
| Analog / relay output module | MT312 | 4 way normal open relay output+ 8 way analog 4-20mA output, relay with load ability:3A 250VAC/30VDC |
| 12V Battery pack module | MT410 | DC 12V battery pack |
| Function | Parameters |
| AC Power Supply | 100VAC~240VAC Frequency 50Hz/60Hz |
| DC Power Supply | 24VDC±10% |
| Power Consumption | ≤15VA |
| Analog Input Channel | Maximum 32 Channel(Can be expanded) |
| Sampling Frequency | 1 sec |
| Recording Frequency | 1 sec~19999 sec |
| Memory | 8GB |
| Record Mode | Loop Record |
| Alarm Type | Up and Low limit alarm |
| Infeed Power Supply | A channel DC 24V |
| Communication | CAN,RS485, Type C,LoRa,Zigbee,4G,Ethernet,WiFi |
| Operation Environment | 0℃~50℃ <85%R.H (No condensing) |
| Storage Environment | -20℃~70℃ <95%R.H (No condensing) |
| Material | ABS+Aluminum alloy |
| Dimension | 150*172*126mm |
| Open Hole Size | 138*138m+1mm |
Accuracy list
It supports the connection of multiple types of signal sensors, enabling the simultaneous testing of parameters including temperature, voltage, humidity, pressure, flow rate, liquid level, current, frequency, vibration, rotational speed and others.
The TP700 Multi-channel Data Logger is widely used in such fields as power and electrical engineering, biopharmaceuticals, electronic testing, new energy, transportation, meteorology, environmental protection, agriculture, and various other industrial sectors.
