| Brand Name: | TOPRIE |
| Model Number: | TP1608K |
| MOQ: | 1 piece |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 100 pieces per day |

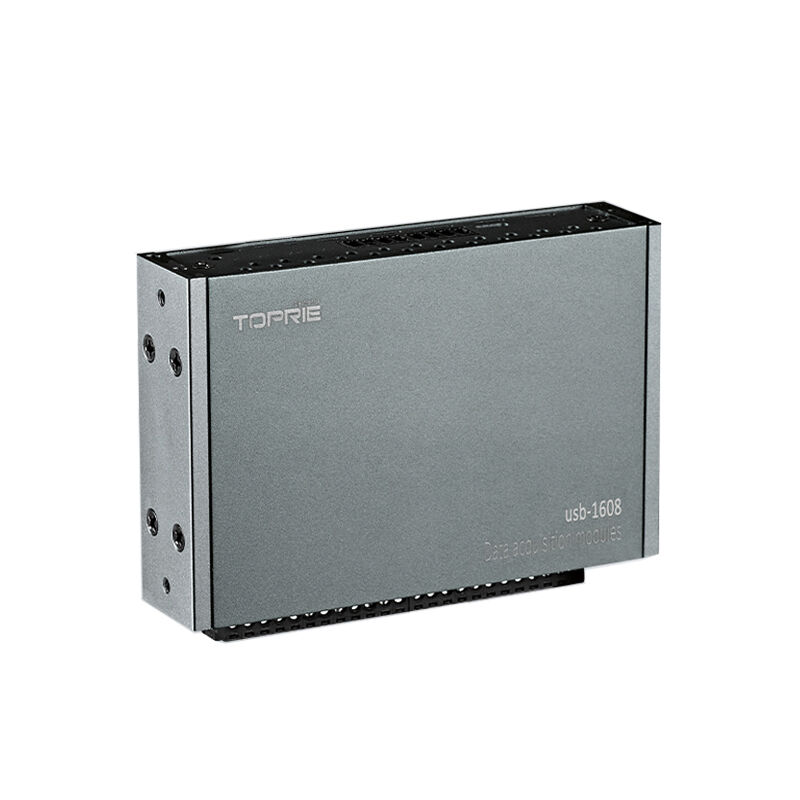

High Quality Switch Quantity Acquisition Module Intelligent Remote Control Data Acquisition Card For Automation Control Solution
Model selection
| Model | Description | Remark |
| TP1608K-A | Standard version | 8CH RS485 standard modbus RTU protocol |
|
TP1608K-L |
LoRa version | 8CH LoRa wireless transmission |
| TP1608K-Z | Zigbee version | 8CH Zigbee wireless transmission |
Specification
| Power supply | USB C 5V/1A power suppy wire terminal 24V/1A |
| Power consumption | Maximum 0.8W |
| Communication | Baud rate 9600bps 8,N,1 baud rate is configurable |
| Protocol | Modbus RTU |
| Communication port | 2 way RS485 (in pallel |
| Switch quantities | 8 CH |
| Switch signal input | 5V~24V |
| Sampling rate | maximum 5KHz |
| Communication | RS485,Zigbee, LoRa |
