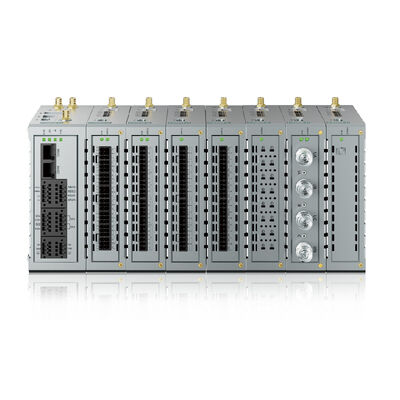

Multi-channel High-speed 0.1s/1s Data Acquisition Module Analog Input 4-20mA 0-5V NTC Temperature Relay Digital Input Output Intelligent Data Acquisition System With Modbus Ethernet Communication

M201 universal signal input data acquisition module	Sampling time: 1s Support thermocouple, thermal resistor,voltage,current etc.. Isolated voltage between channels AC380V/DC400V Operation temperature:-20℃~50℃ Operation humidity:0~90% RH(no condensing) Power supply:9V~28V
M202 thermocouple acquisition module	Sampling time: 1s Support thermocouple Isolated voltage between channels AC380V/DC400V Operation temperature:-20℃~50℃ Operation humidity:0~90% RH(no condensing) Power supply:9V~28V
M203 NTC temperature acquisition module	Sampling time:0.1s~1s Support all kinds of NTC temperature sensors Without Isolated voltage between channels Operation temperature:-20℃~50℃ Operation humidity:0~90% RH(no condensing) Power supply:9V~28V
M208 Universal signal input acquisition module	Sampling time: 1ms,10ms,100ms 1s can be optional Support thermocouple, thermal resistor,voltage,current etc.. Isolated voltage between channels 1500VDC Operation temperature:-20℃~50℃ Operation humidity:0~90% RH(no condensing) Power supply:9V~28V
M210 switch quantities input acquisition module	Measuring frequency,high and low, accumulated count Isolated voltage between channels over 3000V Operation temperature:-20℃~50℃ Operation humidity:0~90% RH(no condensing) Power supply:9V~28V
M220 1 wire digital input data acquisition module	Measuring all kinds of digital sensors Without Isolated voltage between channels Operation temperature:-20℃~50℃ Operation humidity:0~90% RH(no condensing) Power supply:9V~28V
M312 analog +relay output acquistion module	8 channel 4-20mA analog output 4 channel relay output Accuracy:±0.1% (typical value:±0.03%) Relay switch ability:3A,250VAC/30VDC Output terminal: 3.81 pitch Communication:RS485,USB,ethernet, CAN FD
M240 three phase power acquisition module	High accuracy data acquisition Din rail installation Voltage:AC5V~1000V Current:0.001A~20A Accuracy:0.2% Communication:RS485,USB, CAN FD
M241 single phase AC/DC power analysis data acquisition module	High accuracy data acquisition Din rail installation Voltage:AC/DC5V~1000V Current:-0.1A~60A/0.002A~20A Accuracy:voltage:0.2% current: ADC1%,AC 0.5% Communication:RS485,USB, CAN FD
M300 relay data acquisition module	8 channel power relay output Drive command CANDF communication Drive current<3A Load voltage<275VAC Output terminal 3.81 Pitch Ethernet support Modbus TCP
M410 Battery pack	Last 6-8H for all working modules Voltage 12.6V Charging discharging current<1A Power supply 15V~24VDC Ethernet Modbus TCP
