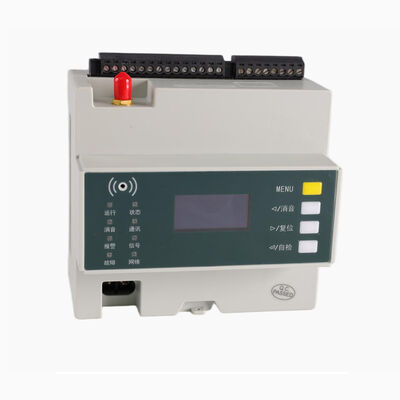

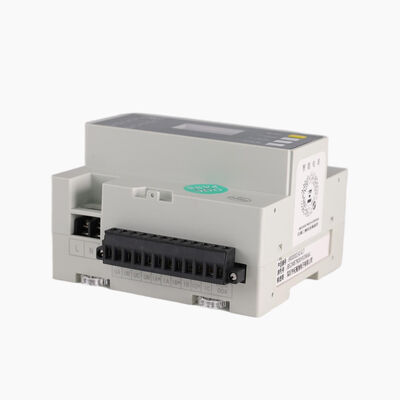

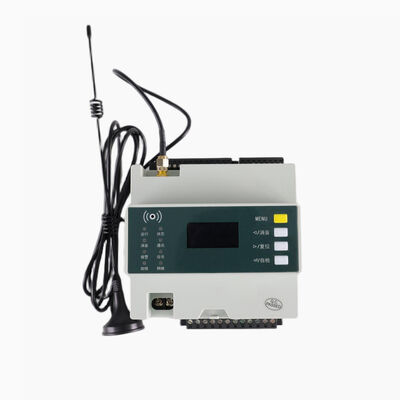

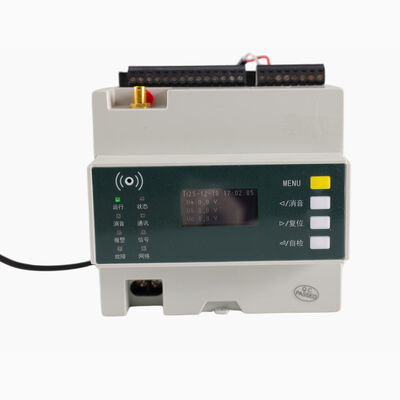

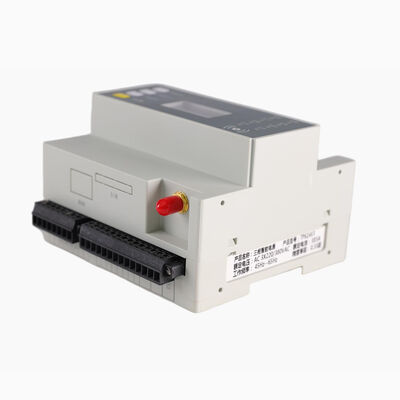

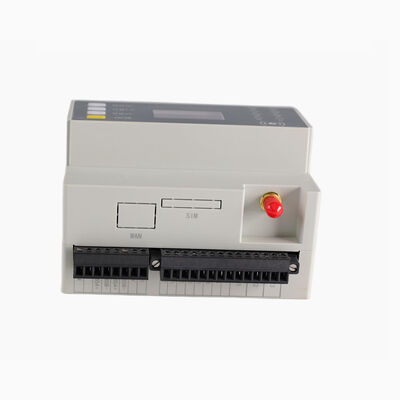

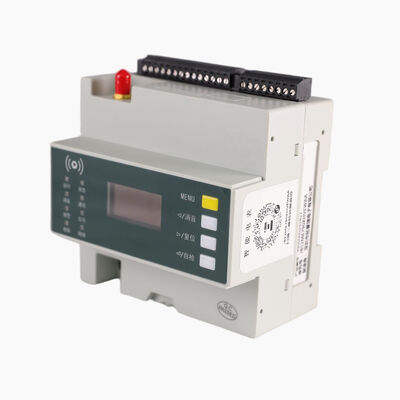

100A Energy Power Meter 100% Leakproof Voltage Protector Relay With Smart Life

Brand Name:	TOPRIE
Model Number:	TP624
MOQ:	1 piece
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability:	100 pieces per day

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Keywords:

Energy Meter

Wire Method:

3 Phase 4 Wire, 3 Phase 3 Wire

Material:

Fireproof ABS

Communication:

WIFI,4G,RJ45,LoRa,LoRaWAN RS485

Protocol:

Modbus RTU,Modbus TCP, MQTT(non Encryption)

Packaging Details:

Packed in Paper box

Supply Ability:

100 pieces per day

Highlight:

100A Energy Power Meter

Leakproof Energy Power Meter

Energy Voltage Protector Relay

Product Description

An energy meter is an electrical device measuring the amount of electrical power consumed. This device allows the determination of energy consumption over a certain time, whether a residential building, a business, or an electrically powered device. It provides detailed information on consumption to reduce electricity bills and increases knowledge about the status of the electricity grid, improving its performance and the quality of service for customers.

Technical Parameters

Parameter	Specification
Rated Voltage	AC100V~265V
Power Consumption	3W
Action Delay Time	1~60sec continuous adjust
Nominal Voltage	AC30V~460V
Nominal Current	AC0.02A~5A
Measuring Accuracy	Room Temperature: Frequency 0.01Hz, voltage & current class 0.2, power rate class 0.5, active energy class 0.2, reactive energy class 2 -20℃~60℃: Frequency 0.01Hz, voltage & current class 0.5, power rate class 0.5, active energy class 0.2, reactive energy class 2
Switch Quantities Input	4 channel, photocoupler isolated for passive dry contact; input type: internally wetted
Switch Quantities Output	4 channel, electromagnetic relay output; contact capacity: 5A continuous, 220V AC/1A DC30V/1A
Protocol	Modbus RTU/MQTT/DLT645 / customized protocol
Communication	4G, WiFi, LoRa or LoRaWAN can be optional
Installation Method	DIN Rail
Display	OLED screen
Event Logs	20 fault, alarms and switch logs
Operating Environment	-20℃~60℃ RH 5%~85% (no condensing)
Transport & Storage Temperature	-25℃~70℃
Atmosphere Pressure	70kpa~106kpa
Altitude	3200imp/Kwh
Baud Rate	115200bps
Dimension	100.5×69.7×108.5mm
Weight	650g
Material	ABS
Fireproof Level	V0

Advantages

Real-time measurement solution: Can measure 30 different electrical parameters, including three phase voltage, current, power, power factor, etc.
Input & Output: One channel of switch quantities input and one channel of relay output
Energy measurement: Bidirectional energy, four-quadrant energy, harmonic energy, cumulative energy
Demand measurement (optional): Maximum demand, demand cycle
Communication protocols: Supports Modbus RTU, MQTT, Modbus TCP, and other customized protocols
Harmonic detection: Total harmonic distortion rate, individual harmonic content (2nd to 31st order)
Real-time monitoring solution: Mobile APP and Cloud IoT platform without charge

Applications

Energy meter application in different fields, including DC Control System, Energy Power Generation System, Power Distribution Cabinet, DC Excitation System, Smart Building, City, Hospital, School, etc.

F A Q

Q: What is warranty of your energy meter?

A: The warranty is 12 months. If you need to extend the time, welcome to contact us for more details.

Q: What is the MOQ (minimum order quantities)?

A: Normally, our brand (Toprie) is without MOQ. If you want to customize your brand, there will be a MOQ of 100 pcs.

Q: What is the communication protocol of your energy meter?

A: 4G WiFi support MQTT (non-encryption). RS485 support Modbus RTU. If you want to customize the protocol, please do not hesitate to let us know and we will accommodate your requirements to meet your demand.

Q: What is your lead time?

A: Sample time 3-5 working days, massive orders will depend on your order quantities and other requirements.

Q: Are you a manufacturer? And where is your factory?

A: Yes, we are a manufacturer located in Shenzhen City. Welcome to come and visit us.
