| Brand Name: | TOPRIE |
| Model Number: | TP2363-FS |
| MOQ: | 1 piece |
| Payment Terms: | Western Union,T/T,D/P,D/A,L/C |
| Supply Ability: | 100 pieces per day |

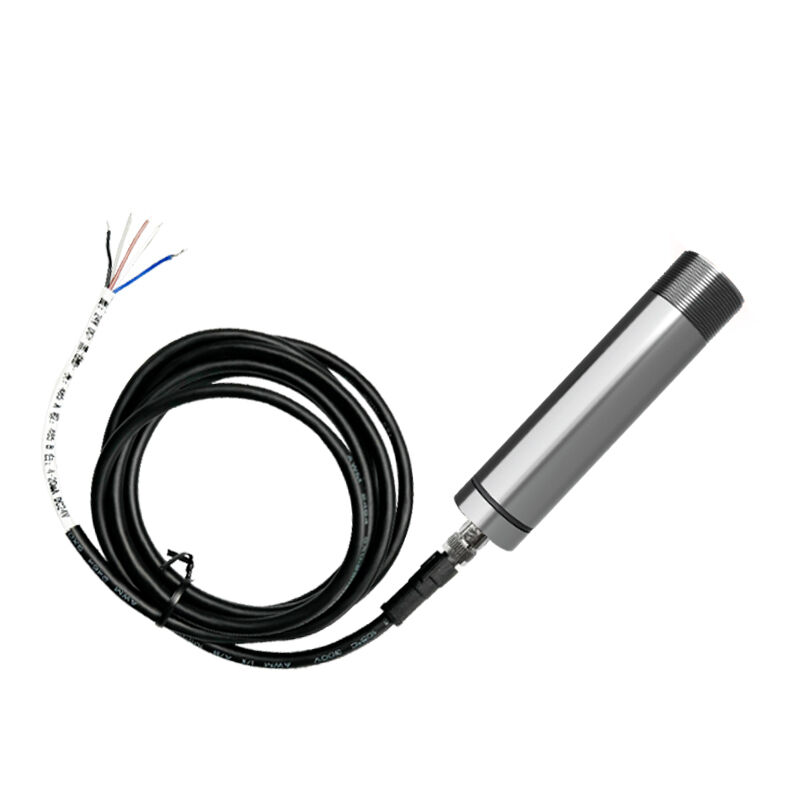

High Quality Non contact infrared temperature sensor Modbus RS485 high temperature monitor
| Product Name | Infrared Temperature Sensor |
| Model | TP2363 |
| Manufacturer | TOPRIE |
| Dimension | 108*25mm |
| Material | Aluminum Alloy |
| Housing Color | Black E-coat |
| Operation Environment | -30℃~85℃ 0~90% RH |
| Storage Environment | -40℃~85℃ 0~95% RH |
| Operation Voltage | DC9V~24V |
| Operation Current | Under working at rated 24V, working current less than 40mA |
| Maximum Rated Power Consumption | 0.96W |
| Ambient Temperature range | -40℃~125℃ The ambient temperature for infrared probe measurements should not be too high; otherwise, it will affect the measurement accuracy of the sensor. |
| Measuring Range | -30℃~550℃/-40℃~1080℃ |
| Resolution | 0.1℃ |
| Accuracy | ±0.5%F.S |
| Temperature Measurement Distance-to-Object Ratio | 12:1 Assuming a heat source with a 10 cm outer diameter, the maximum measurement distance is 120 cm |
| View Angel | 5°/10° |
| Transmit Rate | 0.1~1.0(default 1) |
| Weight | 75.2g builit in laser indicator |
| Current Output | 4~20mA( DC24V) |
| Current Accuracy | ±0.1%F.S |
| Communication Type | RS485 9600,8,N,1 |
| Protocol | Modbus RTU 1 wire bus |
| Data Responding Time | <1 sec |
| Altitude | <3000m |
