| Brand Name: | TOPRIE |
| Model Number: | TP150U |
| MOQ: | 1 piece |
| Price: | USD 180.00~ USD200.00 |
| Payment Terms: | L/C,D/P,D/A,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 pieces per day |
High Quality Modbus Rs485 Edge Gateway CANBUS Rj45 4G WiFi MQTT Multiple Protocol Conversion IoT Computing Gateway For Automation Control
Advanced industrial IoT edge computing solution for real-time data acquisition and processing without programming expertise
Product Overview

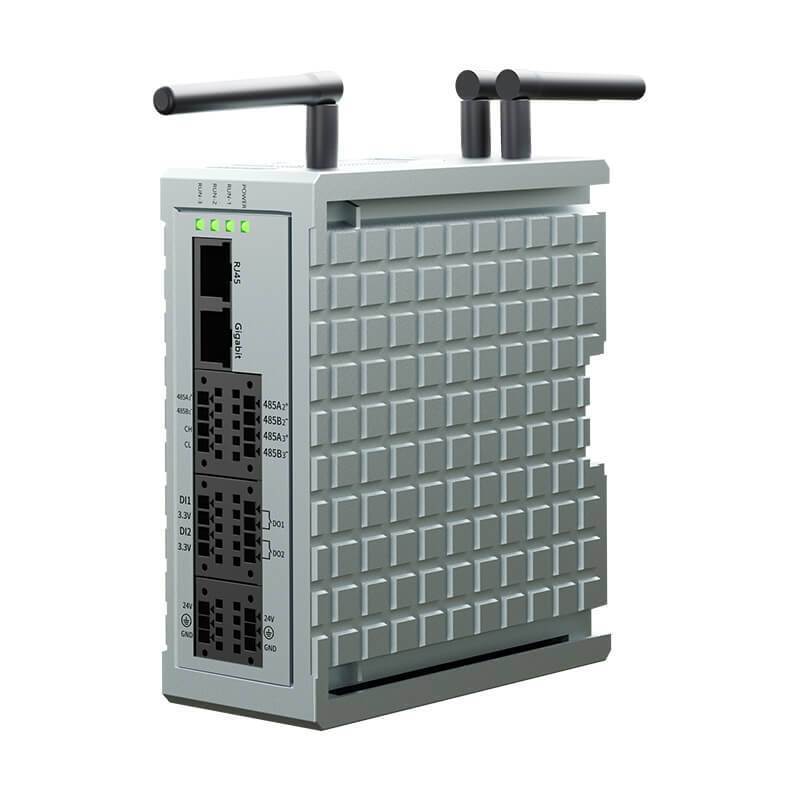

M150U Edge Computing Gateway
The M150U edge computing gateway enables real-time acquisition of on-site data. Without requiring any programming language expertise, users can complete complex engineering projects featuring animated visualization, real-time data processing, integrated display of historical data and curves, as well as multimedia and networking capabilities, by leveraging the I/O drivers for underlying devices or the built-in database provided by the gateway in accordance with actual engineering requirements.
Detailed Specifications and Parameters Sheet
| Core Hardware Configuration | |
| CPU | quadra 4 core main band 1.5GHz |
| Memory | LPDDR4 2GB |
| Storage | 8G eMMC |
| TF-SD Slot | Support maximum 64GB |
| Interfaces and Connectivity | |
| USB host | 2 way USB host (Type A USB 3.0 & Type C high speed USB) |
| Ethernet | 2 way WAN port (10/100/1000Mbps) |
| WIFI | IEEE 802.11b/g/n |
| 4G | LTE Cat1 |
| Serial interface | 3 way Rs485 |
| CAN FD | A way |
| HDMI | support 1080P 60FPS output |
| 2 way Digital input | passive input, inner excitation |
| 2 way digital output | rated load 2A 125VAC/30VDC maximum switch voltage 250VAC maximum switch power 750VA/90W |
| Power Supply and Electrical Characteristics | |
| Power supply | DC 8V~28V |
| Protection | reverse Protection, wrong wire protection |
| Power consumption | <4W |
| Withstand voltage | 500VAC (a minute) |
| Insulation resistance | over 50MΩ (500VDC) |
| Environmental and Physical Characteristics | |
| Withstand vibration | 10~25Hz (X.Y.Z direction 2G / 30 mins) |
| Operation environment | -20℃~60℃ |
| Storage environment | -30℃~70℃ |
| Environmental humidity | 10~90% RH (no condensing) |
| Cool method | natural wind |
| Housing material | ABS |
| Fireproof class | V0 |
| Dimension | 120.55*133.51.5mm |
| Installtion | Din Rail C45 |
| Protection level | IP20 |
| Weight | 400g |
| Software System | |
| System | Ubuntu 20.04 lts |
| Software | WINIF V4.6 |
Key Advantages
Why choose M150U Edge Computing Gateway
Industrial-Grade Design
Full industrial-grade hardware design: All components—from processing chips and communication modules to electronic devices—comply with high industrial standards.
Multi-Functional Integration
Integrated with multi-functional capabilities including gateway, routing, switch, VPN, and device monitoring; equipped with a comprehensive industry protocol library for seamless device integration.
No-Code Configuration
Complete complex engineering projects without programming expertise using intuitive I/O drivers and built-in database for animated visualization and real-time data processing.
Application Field
Collects data from sensor devices deployed across production lines in various manufacturing processes. Through relevant algorithms and tools, the data is analyzed and processed into valuable decision-making insights, enabling the digitization of industrial production workflows.
