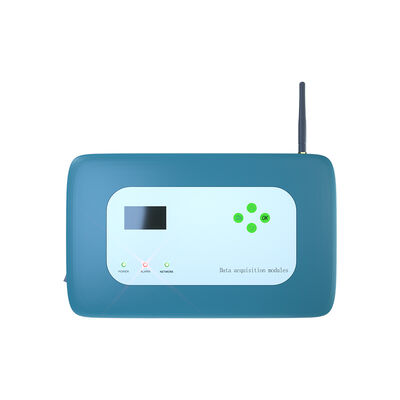

Multifunction Edge Gateway Modbus Data Acquisition Unit 4G WiFi Automation Control Digital Input Output RS485 Gateway Romote Data Terminal Unit RJ45 RTU IoT Gateway
|
| Brand Name: | TOPRIE |
| Model Number: | TP301 |
| MOQ: | 1 piece |
| Price: | USD 180.00~ USD 200.00 per piece |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 pieces per day |
Multifunction Edge Gateway Modbus Data Acquisition Unit 4G WiFi Automation Control Digital Input Output RS485 Gateway Romote Data Terminal Unit RJ45 RTU IoT Gateway
| Category | Specification Details |
|---|---|
| Product name | RTU IoT Gateway |
| Power parameters | Current: 0.5A Maximum, DC 12V |
| External power supply: 0-1A (Voltage is the same as power supply) | |
| Wireless signal access: 2G/WiFi/4G | |
| Signal | Analog input: 8 channel 4-20mA input, 8 channel 0-5V voltage input |
| Analog output: 0-20mA output/0-10V output (optional) | |
| Acquisition accuracy: 0.20% | |
| Output accuracy: 0.03% | |
| Switch input: 8 channel active power supply input; one of 2 channel DI0 and DI1 supports count function; DI0 maximum speed up to 6MHz; DI1 maximum speed up to 100MHz | |
| Relay output: 4 channel relay output function; maximum support AC 220V/5A, DC 20V/5A | |
| Software performance | GPRS/WiFi/4G LAN network connection platform |
| Supports RS485 DTU function; can select wireless/wired connection to the platform, with public socket or independent socket function enabled simultaneously | |
| Supports screen-based configuration of most parameters, and viewing of device running information and device fault status | |
| Large-capacity historical data storage; supports 1 year of data retention (sampling interval: 10 seconds per time) | |
| Supports USB-based data export (CSV format) | |
| Wireless interface supports MQTT/MODBUS RTU communication protocol for cloud platform connection | |
| Network port supports MODBUS TCP server function, TCP client function, MQTT function and MODBUS RTU connection | |
| RS485 Northbound interface: used for MODBUS RTU to read device data and operate/control devices | |
| RS485 Southbound interface: supports transparent transmission function; configurable transparent transmission network port, wireless port; RS485 Northbound processes non-native RTU partial operation communication data | |
| Supports LAN-based device search and configuration | |
| Supports real-time clock calibration | |
| Hardware performance | Environmental fireproof plastic shell |
| USB Type-C interface: for configuration, debugging & upgrading | |
| Power supply indicator light, alarm light and network indicator light | |
| Supports remote SMS-based configuration parameter query, remote device restart, and remote device parameter configuration | |
| 2 channel RS485 southbound and northbound communication ports | |
| 1.3 inch OLED display | |
| 100M RJ45 interface | |
| SIM card slot | |
| SMA antenna | |
| Weight: 600g | |
| Normal working current: 200mA | |
| Standard plug-in terminal interface | |
| Switching mode power supply | |
| Dimension: 205×128×22mm | |
| Working temperature: -20℃ - 60℃; Humidity: 0-95%RH | |
| Storage environment: -30℃ - 65℃; Humidity: 30%-80% |
