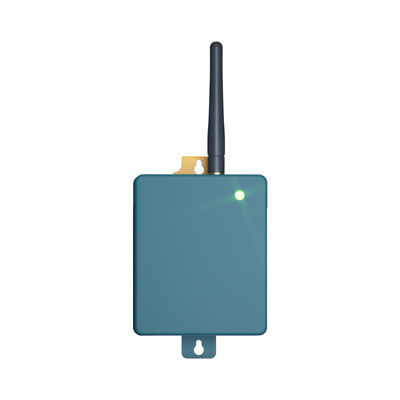

Mini Edge Gateway Modbus RS485 WiFi IoT Gateway For Automation Monitoring Solution
MINI DTU Module: IoT Terminal Device for Transparent Transmission of TTL485 Wireless Communication Data,Industrial-grade IoT Wireless Data Transmission Terminal supporting point-to-point, central-to-multipoint and other modes of data transmission.The mini DTU module data terminal enables permanent online operation without disconnection.
Technical Specifications
| Supported Frequency Bands | LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 GSM: 90/1800 MHz |
| Power Supply Range | Wide Voltage Input, Single power supply range: 8-28V (5V power supply is customizable) |
| Data Rate | 300~115200bps (Default: <115200bps) |
| Low Power Consumption | Average current during transmission: 40mA @ +24V |
| Operating Temperature | -20~60℃ |
| Hot and Humid Environment | Operable at 60℃ with relative humidity of 90%~95% |
| Antenna Connector | SMA-K (Female Connector) |
| Data Interface | RS485/TTL (Simultaneous use is not supported; RS485 communication is enabled by default. Please contact customer service if TTL communication is required) |
| Dimensions | L×W×H: 72×46×23 mm |
Highlights of Product Functionality
Industrial-grade IoT Wireless Data Transmission Terminal
Supports point-to-point, central-to-multipoint and other peer-to-peer data transmission modes
The data terminal supports an always-online working mode
Supports automatic reconnection after disconnection and automatic restart functions
Supports SMS-based query of configuration parameters, device restart and device configuration
Application Fields
The TP306 Mini DTU is widely used in sectors including electric power, petroleum, thermal energy, telecommunications, industry, meteorology, water conservancy, agriculture, and transportation.
