| Brand Name: | TLINK |
| Model Number: | TP302 |
| MOQ: | 1 piece |
| Price: | USD 69.00~USD 99.00 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 piece per day |

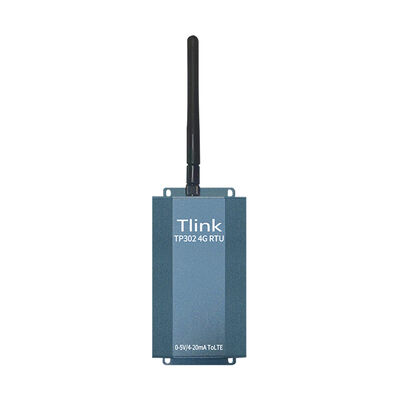

High Quality Analog Input 4G Data Acquisition Unit 4-20mA/0-5V WiFi Edge Gateway Smart WiFi RTU IoT Gateway
TP302 RTU edge gateway helps you achieve remote data monitoring of sensors instantly. It supports analog acquisition (4~20mA/0-5V), GPRS,WiFi,4G wireless remote transmission, low-power sleep with active wake-up, and is applicable to a wider range of scenarios with low bandwidth and low data usage.
| Specification | Details |
|---|---|
| Product name | Industrial RTU IoT Gateway |
| Channel | 3 analog inputs |
| Input type | 0-5V, 4-2mA |
| Input resistance | Voltage measurement: >5MΩ; Current measurement: <15MΩ |
| Resolution | 24-bit |
| Error level | 0.2 |
| Feed output | 500mA current |
| Power supply range | 8-28V |
| Acceptance sensitivity | <-110dBm |
| Low power consumption | <2.5mA (sleep mode), <15mA (standby), <50mA (data communication) |
| Operating temperature | -20–70°C |
| Hot and humid environment | Operable at 60°C with relative humidity of 90–95%RH |
| Vibration environment | Frequency: 10–55Hz; Amplitude: 0.35mm; Three-axis direction |
| Data transmission | Supports remote SMS-based configuration parameter query, remote device restart, and remote device parameter configuration |
| Dimension | 103×64×26mm |
| Features | Provides device status indicator and network status indicator; the status indicator can also be used as a device restart button |
| Offers one feed output with optional output voltage (5V and module power supply voltage); maximum load capacity is 0.5V, recommended not to exceed 0.25V | |
| Automatically reports collected data at regular intervals, with configurable reporting time intervals | |
| Supports full-network access GSM | |
| Supports TCP and MQTT reporting modes | |
| Embedded with TCP/IP protocol stack and GPRS technology; organically integrates the Internet and GPRS network, and supports public network and APN network access | |
| Supports dynamic data center domain names and IP addresses | |
| Supports ALWAYS ONLINE mode, with disconnection and reconnection functionality |
4G RTU edge gateway wireless transmission module is widely used in fields such as power, petroleum, thermal energy, communications, industry, meteorology, water conservancy, agriculture, and transportation.
