4 Major Upgrades
Enhanced Features
|
| Brand Name: | TLINK |
| Model Number: | TP301 |
| MOQ: | 1 piece |
| Price: | USD 60.00~ USD 90.00 per piece |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 pieces per day |

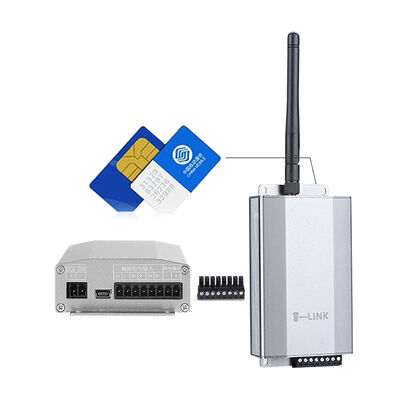

High Quality Wireless Data Terminal Unit 4G WiFi Modbus Gateway Edge RS485 Intelligent IoT Gateway RS232 TTL data acquisition unit For Automation Monitoring Solution
Remote Operation
Simple and Convenient
Independent Power Supply
More Stable Data Transmission
Low-Power Design
Energy Saving & Eco-Friendly
Multiple Protections
More Worry-Free & Reliable
Industrial-grade IoT wireless data transmission terminal with stable and reliable performance, featuring simple and flexible networking. It boasts a data transmission latency of less than 1 second, supports SMS-based remote query, restart, and parameter configuration, and enables simultaneous online monitoring across multiple channels and multiple terminals.
| Product name | Industrial DTU IoT gateway/ Data acquisition module |
|---|---|
| Wide voltage input | Single power supply range +8V - +28V DC; |
| Data rate | 300~115200bps ( 115200bps default ) |
| Serial buffer | 10 KB |
| Power consumption | Average current during communication: 40mA @+24V; average current during idle time: 20mA @+24V |
| Operating temperature/humidity | -20~80℃<95% |
| Serial data interface | TTL/RS232/RS485 |
| Dimension | 92*64*26/mm |
| Features | Support dynamic data center domain name and IP address |
| Support operator APN or VPDN private network | |
| Provides three communication interfaces: TTL, RS232, and RS485. Users can choose the communication port to use according to actual requirements. | |
| The maximum sending data buffer for each communication link is 10K Bytes, and the uploaded data can be cached even if the network is blocked. | |
| The transparent transmission mode can replace the digital radio station. The original system does not need to be modified, minimizing the investment in system updates. | |
| Supports remote SMS configuration parameter query, remote device restart, and remote device parameter configuration | |
| Free IoT cloud platform support: www.tlink.io | |
| Support ALWAYS ONLINE (always online) mode and support reconnection after disconnection. |
4G DTU edge gateway wireless transmission module is widely used in fields such as power, petroleum, thermal energy, communications, industry, meteorology, water conservancy, agriculture, and transportation.
