Infrared Thermal Camera
>

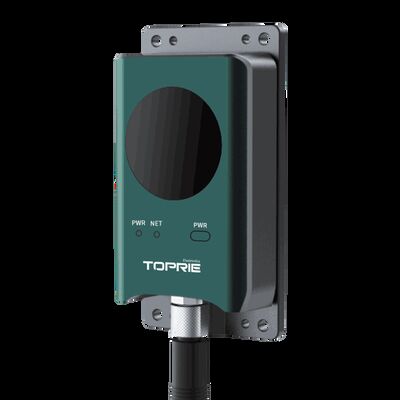

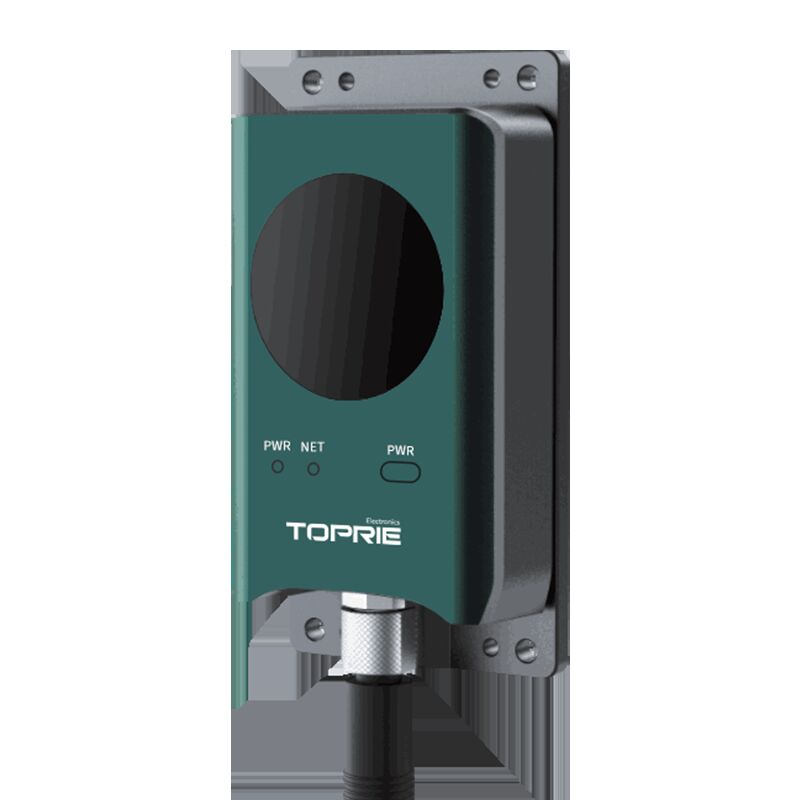

Online Thermal Imaging Camera Infrared Temperature Monitor

Online Thermal Imaging Camera Infrared Temperature Monitor

Brand Name: TOPRIE
Model Number: H61
MOQ: 1 piece
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100 pieces
Detail Information
Place of Origin:
China
Certification:
CE,ROHS
Keywords:
Thermal Imaging Camera
Range:
-20℃~550℃
Accuracy:
±2℃ Or 2% Of Reading
View Angle:
90°*65.3°
Resolution:
160 Pixel*120 Pixel
Frame Rate:
50Hz 25fps
Pixel Size:
17μm
Response Wavelength:
8~14μm
NETD:
≤40mK(@30℃,F#1.1)
Lens Focal Length:
1.8mm
Maximum Aperture Value:
F1.1
Close-up Distance:
0.1m
Field Of View:
90°*65.3°
Color Palette:
Iron Red 2
Packaging Details:
Packed in paper box
Supply Ability:
100 pieces
Highlight:

Online Thermal Imaging Camera

,

Online Infrared Temperature Monitor

,

Infrared Temperature Monitor IP67

Product Description

Online Thermal Imaging Camera Infrared Temperature Monitor


Sensor Type Vanadium Oxide Uncooled Detector
Resolution 160 pixel*120 pixel
Frame Rate 50Hz:25fps
Pixel Size 17μm
Responding Wavelength 8~14μm
NTED ≤40mk(@30℃,F#=1.1)
Maximum Image Size 160pixel*120pixel
Thermal Imaging Lens Focal Length 1.8mm
MRAD 9.44
Maximum Aperture Value F1.1
Thermal Imaging Minimum Focus Distance 0.1m
Measuring Temperature Furtherest Distance(0.1*0.1M) 1.5M
Field of View 90°x65.3°
Color palette Iron red 2
Accuracy ±2℃ or ±2% reading
Range -20℃~150℃ or  0℃~550℃
Dual-light Fusion Supports fusing visible light image information with the thermal imaging channel, enhancing image details in the thermal imaging channel
Smart Information Overlay 10 point temperature measurement, 10 blank temperature measurement, 1 line temperature measurement
Maximum Preview Channels 20CH
Video Compress Standard H.265/H.264
Client iVMS-4200/iVMS-4800
Rs485 Control Interface a channel support HIKVISION/PELCO-D/PEKCO-P/Modbus protocol
Network Interface 1 a channel of RJ45 10M/100M ethernet
Wireless Transmission Support 433 wireless transmission, Visible transmission distant≥100m
Network Protocol IPV4,IPV6,HTTP,HTTPS,Qos,SMTP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,DHCP
Application Program Interface

Support ISAPI,SDK16/32 bit 160*120 pixel temperature data export

Support open type network video interface protocol

Menu Language CN/EN
Storage Environment -40℃~70℃,<95% RH
Housing Material PC+Fiber glass+Aluminum alloy
Installation Backplate+bracket
Dimension 102*51.1*27.5mm(LWH)
Power Supply DC10V~30V
Operation Environment -20℃~50℃,<90% RH
Power Consumption 1.6W
Protection Level IP67
Weight 178g
