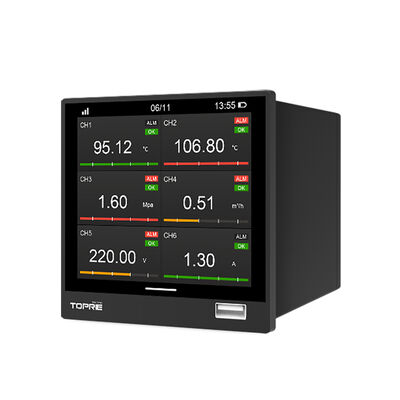

Intelligent 4G WiFi Paperless Recorder Temperature Pressure Current Voltage Data Logger

Brand Name:	TOPRIE
Model Number:	TP740
MOQ:	1 piece
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 pieces per day

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Keywords:

Paperless Recorder

Power Supply:

AC85V~265V DC 8~24V

Power Consumption:

5VA

Channel Quantities:

12CH(analog Input 1-8CH Pulse Input 2-4CH)

Thermocouple:

K,E,R,B,N,T,E,J,S,WRE5-26,WRE3-25

Thermal Resistor:

Pt100,Pt1000

Current:

4-20mA,0-10mA

Voltage:

0-5V,0-10V,±20mV,±100mV

Isolated Voltage:

420V

Recording Frequency:

1-9999s

Storage:

8GB

Recording Mode:

Loop Record

Alarm Type:

Up And Low Alarm Output,4 Mode(upper,up,low & Lower)

Relay:

2-4 Open Relay 30VDC/1A

Communication:

RS485,Ethernet,4G,WiFi,Thread,LoRa

Protocol:

Modbus RTU,Modbus TCP

Operation Environment:

Temp:-20~60℃，humidity:0~95%RH

Material:

ABS

Dimension:

96*96*102mm

Open Hole Size:

92*92mm

Packaging Details:

Packed in paper carton

Supply Ability:

100 pieces per day

Highlight:

4G Paperless Recorder

WiFi Paperless Recorder

Intelligent Current Voltage Data Logger

Product Description

High Quality Paperless Recorder 96*96mm Panel Temperature Analog Input Pressure Current Voltage Data Logger Modbus RS485 Intelligent 4G WiFi RJ45 Data Logger

4" touch screen paperless recorder with 12 channel (8 channel universal input,2-4 channel of pulse input for optional)
It supports analog input signal temperature,humidity,current,voltage,pressure,level,flow,displacement etc..
Communication: RS485,4G,WiFi, Ethernet,LoRa etc..
Certificates CE,ROHS
Protocol:Modbus RTU,Modbus TCP
Warranty: 12 months
Free IoT plaform and mobile APP monitor, support real-time data view,historcial data export CSV,PDF format,alarm information push via email.

Data Acquistion list

Input type		Measuring range (Indication range)	Measuring accuracy (quoted error,absoluted error)	Digit display resolution
DC voltage	0-10V	0V~＋11.000V	0.05%F.S±0.1mV	0.01V
	0-5V	0V~＋5.000V	0.05%F.S±0.1mV	0.01V
	±20mV	-21mV~＋21mV	0.005%F.S±0.005mV	0.01mV
	±100mV	-110.0mV~＋110.mV	0.005%F.S±0.005mV	0.01mV
DC current	4-20mA	＋3mA~21.00mA	0.005%F.S±0.005mA	0.01mA
			Measuring accuracy (related error) all without even numbers
Themocouple	K	-60℃~+1372℃	±0.05%rdg.±2.0℃	0.01℃
	J	-100℃~+1200℃	±0.05%rdg.±2.0℃	0.01℃
	E	-100℃~+1000℃	±0.05%rdg.±2.0℃	0.01℃
	T	-100℃~+400℃	±0.05%rdg.±2.0℃	0.01℃
	N	-100℃~+1300℃	±0.05%rdg.±2.5℃	0.01℃
	W	+1500℃~+2315℃	±0.05%rdg.±3.5℃	0.01℃
		0℃~+1500℃	±0.05%rdg.±3.0℃	0.01℃
	R	+800℃~+1768℃	±0.05%rdg.±3.0℃	0.01℃
		+400℃~+800℃	±0..2%rdg.±4.0℃	0.01℃
	S	+800℃~+1768℃	±0.05%rdg.±3.0℃	0.01℃
		+400℃~+800℃	±0.2%rdg.±2.0℃	0.01℃
	B	+800℃~+1820℃	±0.05%rdg.±3.0℃	0.01℃
		+400℃~+800℃	±0.2%rdg.±4.0℃	0.01℃
Thermal resistor	PT100	-200℃~+660℃	±0.05%rdg.±0.4℃	0.01℃
	PT1000	-200℃~+300℃	±0.05%rdg.±0.4℃	0.01℃
Warmup time	Over 10 minutes
Operation status	Temperature:25℃ ±3℃ Humidity: 55%±10% Power supply 8V~28VDC
Environment	-20℃~60℃ 0~95%RH no condensing
